| Type: | Reverse Osmosis Membrane | Model NO.: | BW-8040-ULP |
|---|---|---|---|
| Desalination: | 99.2% | Capacity: | 10500 GPD |
| Certification: | CE, RoHS, ISO9001, NSF | Warranty: | 2 Years |
| Working Up: | 2000ppm | Operation Pressure: | 150psi |
| Highlight: | ulp 8040 10500GPD,reverse osmosis membranes 8040 10500GPD,industrial RO Membranes 10500GPD |
||

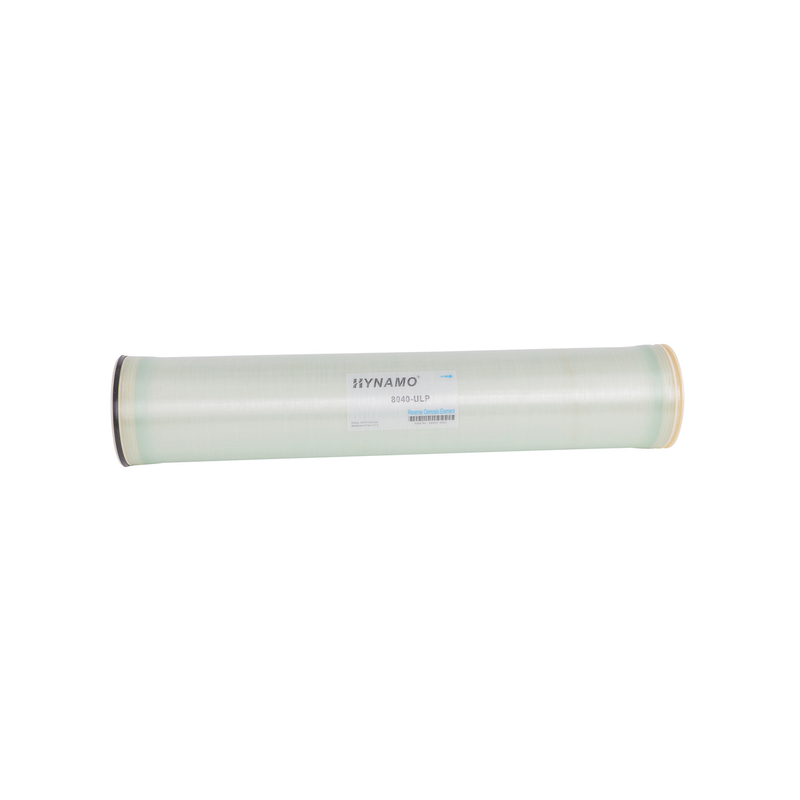

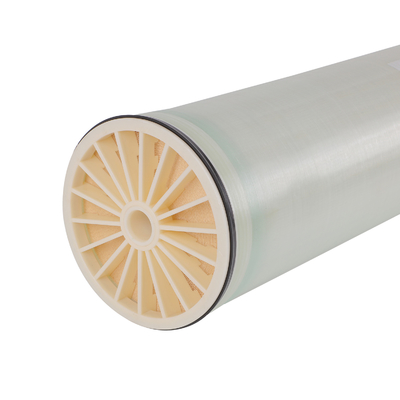

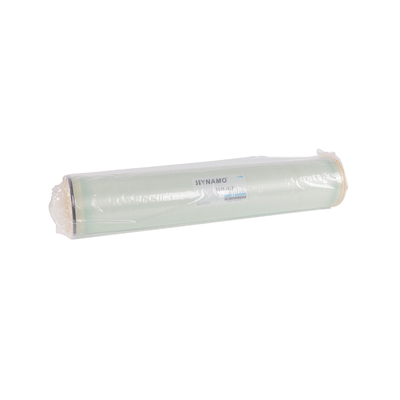

Industrial RO Water Purifier 8040-ULP Reverse Osmosis Membrane for RO Plant
Reverse osmosis membranes can be used for a variety of fluid separations. Currently, the most widely used reverse osmosis membranes are cross-linked aromatic polyamide reverse osmosis membranes. Usually, m-phenylenediamine and trimesoyl chloride are used for interfacial polycondensation on the surface of porous polysulfone supported membranes. A polyamide layer is formed. The polyamide layer obtained by the reaction is the key to influence the water permeability and salt retardation rate. Therefore, focusing on the interfacial polycondensation reaction and optimizing the polyamide layer in order to obtain a reverse osmosis membrane with large flux and high salt removal rate has always been the direction of many researchers.
Ultra Low Pressure Reverse Osmosis Membrane Element could filter the water and salt under very low operation pressure, and get the rate as high as the membrane of normal low pressure. The operation pressure could get 7 bar, half of the normal low pressure membrane. Suitable for desalination from the water which with good quality. Application range: Food industry, Drinking water industrial, Electric power feedwater, bioindustr, etc.
| Model Number | Description | BW-8040-ULP |
| Performance & Test Condition |
The Desalination Rate % | 99.2% |
| Water Rate GDP | 10500 | |
| The Test pressure | 150psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2000ppm | |
| Test solution pH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
