Product Details:
Payment & Shipping Terms:
|
| Type: | 3013-800 | Salt Rejection Rate: | 95% |
|---|---|---|---|
| Capacity: | 800GPD | Warranty: | 3 Years |
| Weight: | 0.6KG | Working Up: | 1000TDS |
| Recovery: | 50% | Function: | Water Purification Plant |
| Highlight: | 800 gpd ro system,Large Flow Reverse Osmosis RO Membrane,Reverse Osmosis RO Membrane Element |
||

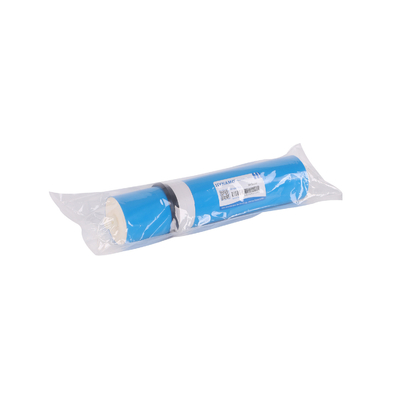

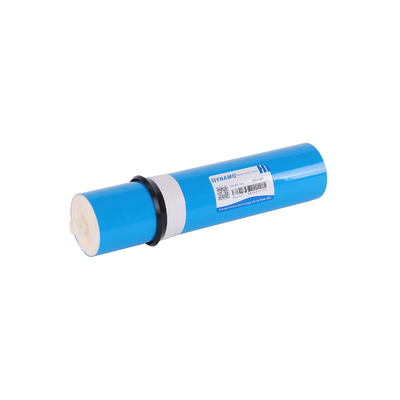

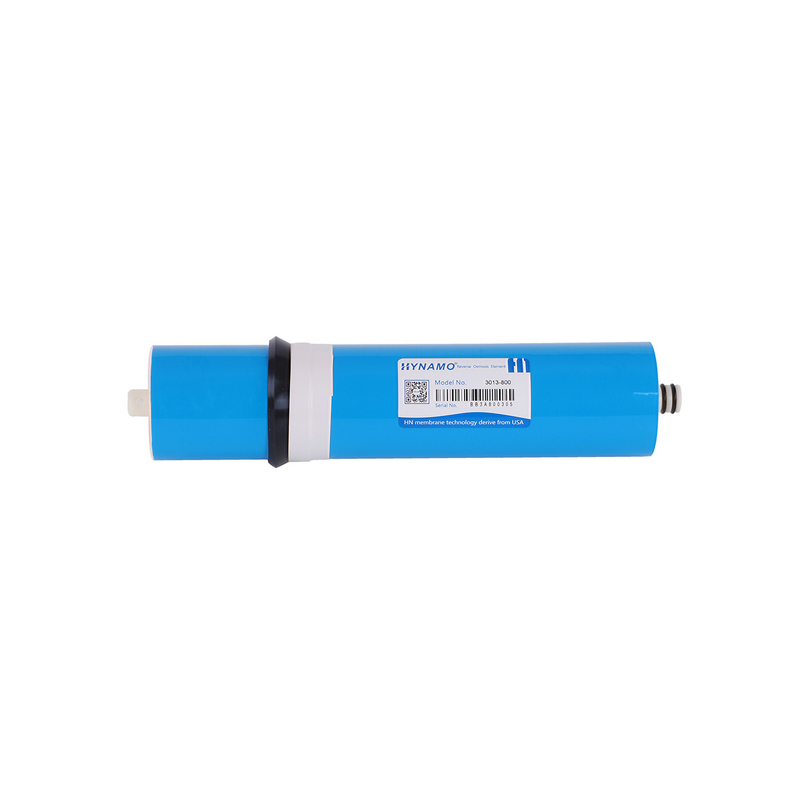

50% Recovery 800GPD Large Flow Reverse Osmosis RO Membrane Element for RO System
With the rapid development of reverse osmosis membrane technology and the in-depth use of membrane elements, the development and preparation of large-flux reverse osmosis membranes has gradually become the focus of research. Large throughput means that the energy consumption required to process the same volume of liquid is low, which can effectively save investment and equipment operating costs, and improve processing efficiency.
RO system membrane is made of the sedi-permeable membrane with the 0.1mm filtration precision for separating and removing the dissolved solids, organics, bacteria etc. According to the water output capacity, the different large flow membrane is available as follows: 300G, 400G,500G,600G,700G,800G.
Performance and test conditions
| model | Stable rejection rate(%) | average permeate flowGPD(m3/d) | test condition | ||
| operation pressure psi(Mpa) | test liquid NaCl(ppm) | recovery rate (%) | |||
| 2812-300 | 97 | 300(1.14) | 90(0.61) | 500 | 50 |
| 2812-400 | 95 | 400(1.52) | 90(0.61) | 500 | 50 |
| 3013-400 | 95 | 400(1.52) | 100(0.7) | 500 | 50 |
| 3013-600 | 95 | 600(2.28) | 100(0.7) | 500 | 50 |
| 3013-800 | 95 | 800(3.04) | 100(0.7) | 500 | 50 |
Note: Single membrane permeate flow change in the range of ±15%
Test Conditions
Test Pressure 100psi( 0.7Mpa)
Temperature 25ºC
Concentration of Testing Solution (NaCl) 500ppm
Testing Solution PH 2-11
Note:
1. The Max. continous operation temperature is 35ºC when PH rate over 10.
2. In certain conditions,if would cause membrane breakage if the free chlorine or the other oxidant in feedwater.The production quality guarantee range is notincluded membrane breakage by oxiadation.
Dimension of Membrane Element
3013-800: A:13.0mm B:3.0mm C:0.68mm D:0.75mm E:11.5mm
HN-JCM brand membrane element produced by world advanced membrane technology and fully automatic production equipment. It can operation under the extra low pressure. Our membrane suitable for household water purifiers, hospitals, laboratory pure water, treatment municipal tap water, well water and other low salinity water sources.
