Product Details:
Payment & Shipping Terms:
|
| Type: | Reverse Osmosis Membrane | Salt Rejection Rate: | 99.4% |
|---|---|---|---|
| Capacity: | 1900GPD | Recovery Rate: | 15% |
| Operation Pressure: | 350psi | Weight: | 3.8KG |
| Warranty: | 3 Years | Packing: | 1PCS/Carton |
| Highlight: | ro membrane high tds,6000 tds membrane,lp-4040 |
||

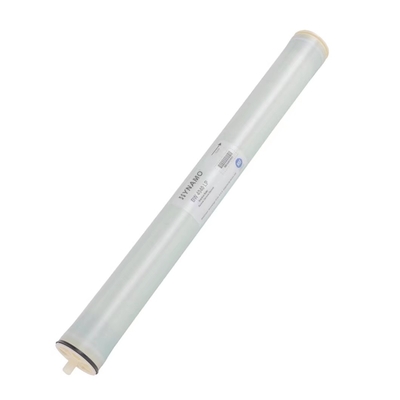

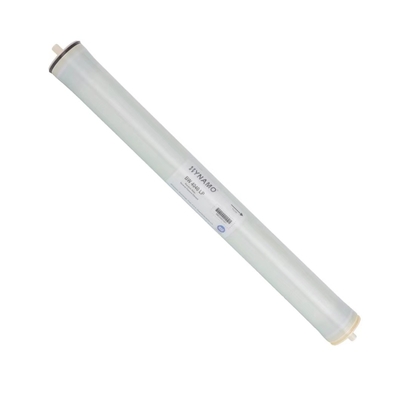

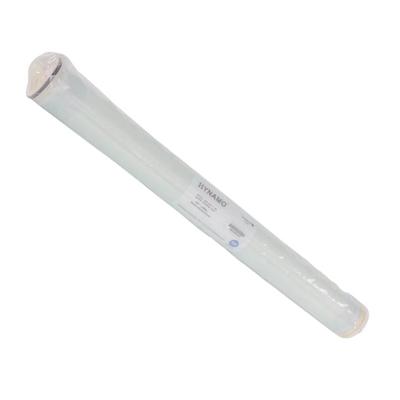

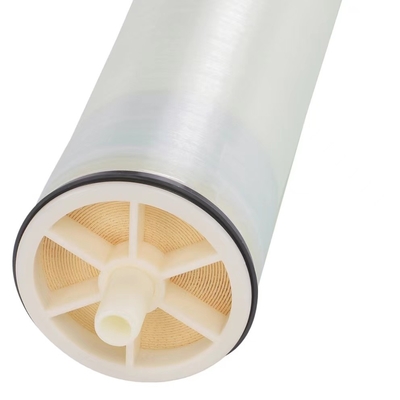

BW-4040 Working Up 6000TDS Reverse Osmosis RO Membrane for RO Water Purifier System
RO membranes, in general, remove 90% or more of the contaminants present in the water, including TDS. When the TDS levels of your water source changes, it will affect the quality of the purified water output from your reverse osmosis system.
High TDS from a reverse osmosis system can be caused by the membrane malfunctioning, poor water pressure, a restricted drain line, non-reverse osmosis water contamination, higher TDS going into the reverse osmosis system or re-mineralization of the reverse osmosis water. Therefore, we have developed membrane elements for high TDS environments, normally, can be working up to 5000ppm, some also can be working up to 6000ppm to 8000ppm according to customer's request for high TDS series.
SPECIFICATIONS
| Model Number | Description | 4040-LP |
| rformance & Test Condition |
The Desalination Rate % | 99.4% |
| Water Rate GDP | 1900 | |
| The Test pressure | 350psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 6000ppm | |
| Test solution pH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | ≤5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
Dimension of Membrane Element
PROCEDURES
FAQ:
Q: How to buy your products?
A: we need some essential information include sewage sources, sewage quality ( COD, BOD,SS),Required Filtered water quality, designed technological process, site engineering conditions (contact us for details),then we will design the uitable solutions for you and prepare to give you best price.
Q: How to pay?
A: TT and L/C are acceptable and TT will be more appreciated. 30% deposit before producing, 70% balanced against the copy of B/L.
Q: What is the delivery time?
A: Usually within 15days. Also depends on order quantities.
Q: Can the package be customized by our own logo ?
A: Yes, the package can be customized your logo, but the MOQ will be higher for which we can discuss as per the specific orders.
Q: How to install after the products arriving destination?
A: We will provide detailed illustrations to you. And we can also provide guide to your workers how to use it and how to maintain
it.
Q:What's the certification do you have?
A: We have NSF, ISO9001, OHSAS18001, ISO14001 Certifications.
