| Certification: | CE, RoHS, ISO9001, NSF | Type: | Reverse Osmosis Membrane |
|---|---|---|---|
| Model NO.: | BW 4040 ULP | Desalination: | 99.2% |
| Capacity: | 2400GPD | Warranty: | 3 Years |
| Working Up: | 2000 Ppm | Operation Pressure: | 150psi |
| High Light: | rohs membrana bw-4040,rohs bw 30 4040,rohs ro membrane filters |
||

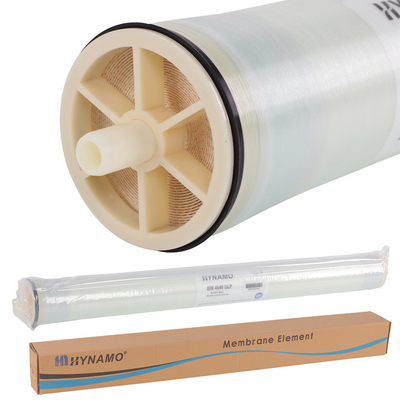

BW 4040 ULP Reverse Osmosis RO Membrane for Industrial RO Water Purifier
The osmotic pressure of reverse osmosis equipment is a function of the concentration of salt or organic matter in the water. The higher the salt content, the higher the osmotic pressure. When the influent pressure remains unchanged, the net pressure will decrease and the water production will decrease. The salt permeability is proportional to the salt concentration difference between the front and back sides of the reverse osmosis membrane. For the same system, the operating pressure and the conductivity of the product water are also different depending on the salt content of the feed water. For every l00ppm increase in the salt content of the feed water, the feed water pressure needs to increase by about 0.007MPa. rate also increased accordingly. Suspended solids in water refer to the substances that remain on the surface of the filter material while the water is being filtered, and are mainly composed of particles. The high content of suspended solids will lead to serious blockage of reverse osmosis and nanofiltration systems quickly, affecting the water production and water quality of the system.
Specification
| Model Number | Description | BW-4040-ULP |
| Performance & Test Condition |
The Desalination Rate % | 99.2% |
| Water Rate GDP | 2400 | |
| The Test pressure | 150psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2000ppm | |
| Test solution pH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
FAQ:
1. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: Should we use our logo/brand?
A: Yes, OEM is absolutely supported. But for some items quatity is 500pcs.
3. Q: What is the filtering accuracy of RO membrane?
A: RO meembran filtering accuracy is 0.0001um.
4.RO membrene desalination rate and service life ?
A: RO meembran desalination rate more 98%,service life according to water quality 2-3years
5. Q: What is the payment?
A: Usually we offer two payment terms: by Alibaba or by TT. L/C and D/A.
6. Q: How long time have your company in water treatment?
A: We have more than 18 years experience in water treatment equipment/water treatment solution.
