| Type: | RO Membrane Element | Salt Rejection Rate: | 95% |
|---|---|---|---|
| Capacity: | 3.04m³/d | Warranty: | 3 Years |
| Weight: | 0.6KG | Working Up: | 1000ppm |
| Recovery: | 50%±15% | Function: | Water Purification Plant |
| Supply Ability: | 10000 Pieces Per Month | Applicable Industries: | Hotels, Building Material Shops, Food & Beverage Factor |
| Highlight: | 800 GPD RO Membranes,ro membrane 500 gpd,800 gpd membrane |
||

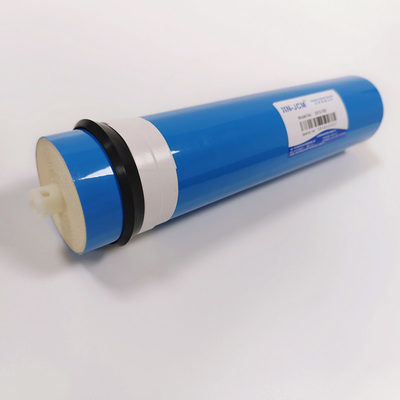

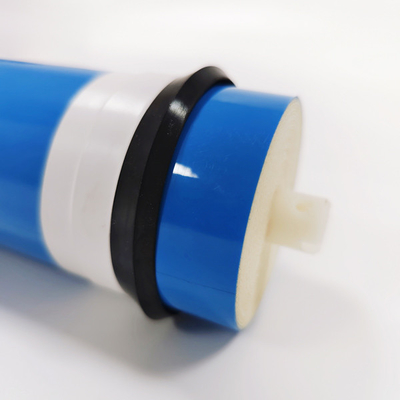

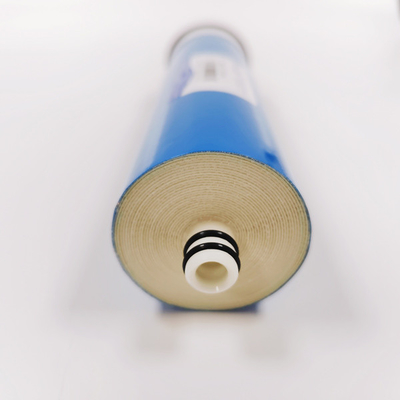

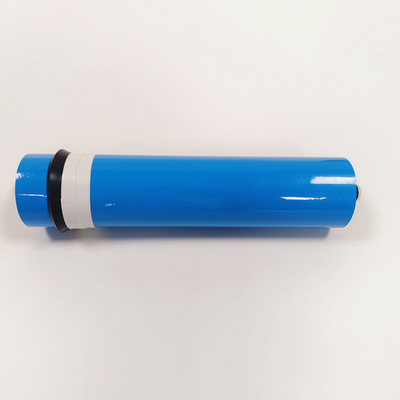

Water Filter Commercial Purifier Hynamo 3013-800 GPD RO Membrane
Membranes are used more and more often for the creation of process water from groundwater, surface water or wastewater. Membranes are now competitive for conventional techniques. The membrane separation process is based on the presence of semi permeable membranes.
RO system membrane is made of the sedi-permeable membrane with the 0.1mm filtration precision for separating and removing the dissolved solids, organics, bacteria etc. According to the water output capacity, the different large flow membrane is available as follows: 300G, 400G,500G,600G,700G,800G.
Product Specification
| Model | 3013-800 | |
| Performance | Stable Desalination Rate% | 96 |
| Average permeate Flow GPD | 800 | |
| Test Conditions | Test Pressure | 0.6Mpa |
| Test Temperature | 25±1ºC | |
| Test Solution(NaCl) | 250±50ppm | |
| Test solution pH | 6.5-7.5 | |
| Single Membrane Element Recovery Rate | 50±5% | |
Performance and test conditions
| model | Stable rejection rate(%) | average permeate flowGPD(m3/d) | test condition | ||
| operation pressure psi(Mpa) | test liquid NaCl(ppm) | recovery rate (%) | |||
| 2812-300 | 97 | 300(1.14) | 90(0.61) | 500 | 50 |
| 2812-400 | 95 | 400(1.52) | 90(0.61) | 500 | 50 |
| 3013-400 | 95 | 400(1.52) | 100(0.7) | 500 | 50 |
| 3013-600 | 95 | 600(2.28) | 100(0.7) | 500 | 50 |
| 3013-800 | 95 | 800(3.04) | 100(0.7) | 500 | 50 |
Note: Single membrane permeate flow change in the range of ±15%
Test Conditions
Test Pressure 100psi( 0.7Mpa)
Temperature 25ºC
Concentration of Testing Solution (NaCl) 500ppm
Testing Solution PH 2-11
Note:
1. The Max. continous operation temperature is 35ºC when PH rate over 10.
2. In certain conditions,if would cause membrane breakage if the free chlorine or the other oxidant in feedwater.The production quality guarantee range is notincluded membrane breakage by oxiadation.
Dimension of Membrane Element
3013-800: A:13.0inch B:3.0inch C:0.68inch D:0.75inch E:11.5inch
HN-JCM brand membrane element produced by world advanced membrane technology and fully automatic production equipment. It can operation under the extra low pressure. Our membrane suitable for household water purifiers, hospitals, laboratory pure water, treatment municipal tap water, well water and other low salinity water sources.
