Product Details:
Payment & Shipping Terms:
|
| Type: | Water Filter Parts | Model NO.: | 3013-500-NCM |
|---|---|---|---|
| Desalination: | 97% | Capacity: | 500GPD |
| Working Up: | 1000TDS | Operation Pressure: | 100psi |
| Weight: | 0.42KG | Box Size: | 33*33*35cm |
| Customized: | Offer OEM/ODM Services | ||
| High Light: | 500 gpd membrane,ro membrane 500 gpd,membrane 500 gpd |
||

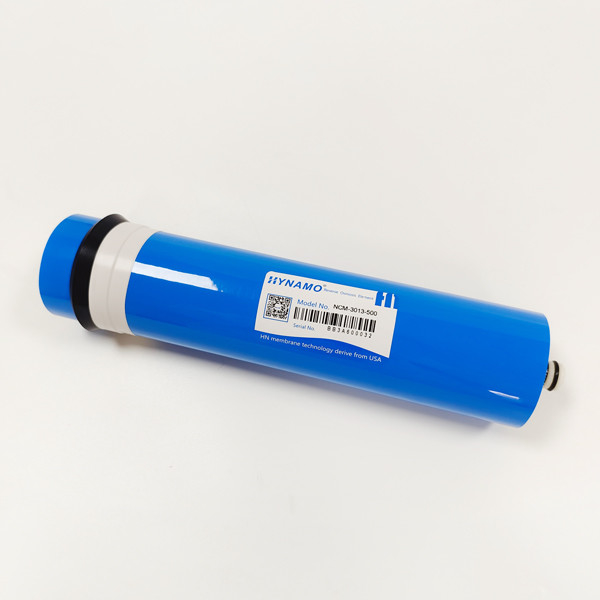

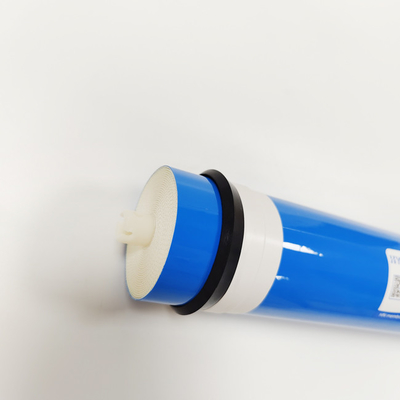

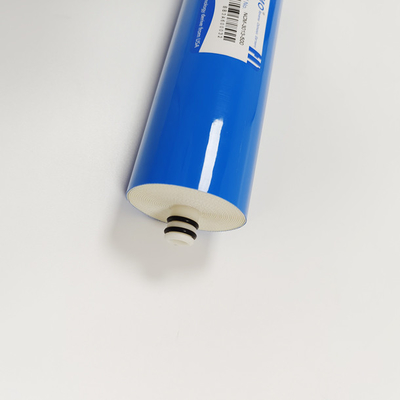

The desalination rate 3013 RO membrane can reach 97%,and the average daily water production is 400-600 GDP per day,which is suitable for 3013 membrane shell.
| Model | HC-3013-400G | HC-3013-500G | |
| Performance | Stable salt rejection% | 98 | 95 |
| Minimum salt rejection % | 95 | 93 | |
| Average permeate flow GPD(L/d) | 400(1512) | 500(1890) | |
| Model | HC-3013-600G | HC-3013-800G | |
| Performance | Stable salt rejection% | 95 | 95 |
| Minimum salt rejection % | 93 | 93 | |
| Average permeate flow GPD(L/d) | 600(2270) | 800(3030) | |
| Testing condition | Testing pressure | 100psi(0.7Mpa) | |
| Testing temperature | 25℃ | ||
| Concentration of testing solution (NaCl) | 250ppm | ||
| PH value of testing solution | 6.5-7.5 | ||
| Recovery rate of single membrane element | 50 | ||
| Maximum operating condition | Max operating pressure | 300psi(2.0Mpa) | |
| Max feed water temperature | 45℃ | ||
| Max SDI of feed water | 5 | ||
| Max concentration of free chlorine | <0.1mg/l | ||
| PH value range of continual feed water | 3~10 | ||
| PH value range of income water when chemical cleaning | 2~11 | ||
| The maximum pressure drop of single membrane | 10psi(0.07Mpa) | ||
Domestic Reverse Osmosis Membrane Elements Product Dimension
|
Model |
A/mm(inch) |
B/mm(inch) |
C/mm(inch) |
D1/mm(inch) |
D2/mm(inch) |
|
HC-1812-75G |
298 (11.73) |
46 (1.81) |
17 (0.67) |
21 (0.83) |
21 (0.83) |
|
HC-2012-100G |
298 (11.73) |
48 (1.89) |
17 (0.67) |
21 (0.83) |
21 (0.83) |
|
HC-2012-150G |
298 (11.73) |
48 (1.89) |
17 (0.67) |
21 (0.83) |
21 (0.83) |
|
HC-2012-200G |
298 (11.73) |
48 (1.89) |
17 (0.67) |
21 (0.83) |
21 (0.83) |
|
HC-3013-400G |
333 (13.11) |
67.8 (2.67) |
17 (0.67) |
21 (0.83) |
21 (0.83) |
|
HC-3013-500G |
333 (13.11) |
67.8 (2.67) |
17 (0.67) |
21 (0.83) |
21 (0.83) |
|
HC-3013-600G |
333 (13.11) |
67.8 (2.67) |
17 (0.67) |
21 (0.83) |
21 (0.83) |
|
HC-3013-800G |
333 (13.11) |
67.8 (2.67) |
17 (0.67) |
21 (0.83) |
21 (0.83) |
Our Service:
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design is available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying to offer.
4.All of our products are produced by our professional workers and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you within 7 working days after your payment
3. Email you the tracking No., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.
