Product Details:
Payment & Shipping Terms:
|
| Type: | RO Membrane Element | Capacity: | 75GPD |
|---|---|---|---|
| Salt Rejection: | 97% | Model NO.: | BW 1810-75 |
| Packaging: | 25PCS Or 50PCS/CTN | Certification: | ISO9001, RoHS, CE, NSF |
| Place Of Origin: | Hangzhou,China | Warranty: | 1 Year |
| Highlight: | ro membrane filter replacement,75 GPD ro membrane filter,75 gpd reverse osmosis membrane |
||

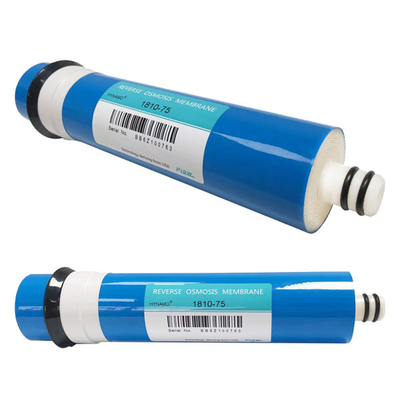

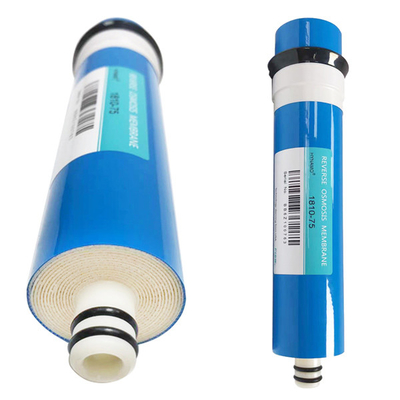

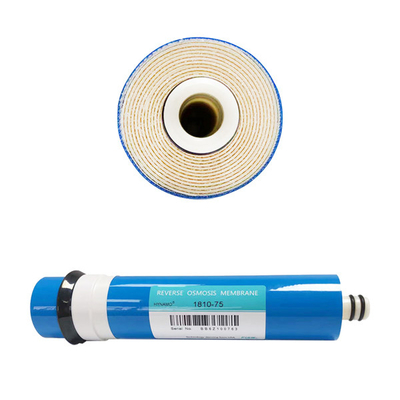

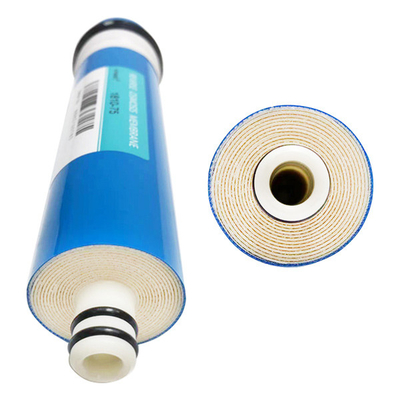

Customized Reverse Osmosis Membrane Element 1810-75GPD for RO Water Treatment
Hynamo provide all ranges of ro membrane offering as well as OEM solutions.
Membrane Performance Specifications:
|
Name
|
Model
|
Active Membrane Area ft2(m2)
|
Average Permeated Flow GPD(m3/d)
|
Stable Rejection Rate(%)
|
Minimum Rejection Rate(%)
|
|
Reverse Osmosis Membrane
|
1810-50
|
4.4(0.41)
|
50(0.19)
|
97%
|
96.0
|
|
1810-75
|
5.0(0.46)
|
75(0.28)
|
97%
|
96.0
|
|
|
1810-100
|
6.0(0.56)
|
100(0.38)
|
97%
|
96.0
|
Membrane Operating Limits:
| RO Membrane Model No. | Maximum Operating Temperature | Maximum Operating Pressure | Feed Water PH Range, continuous operation | Maximum Feed Water Turbidity | Maximum Feed Water SDI | Chlorine Tolerance (ppm) |
| 1808-50 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
| 1809-100 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
| 1810-50 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
| 1810-75 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
| 1810-100 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
Note:
1. Single membrane permeate flow change in the range of ±15%
2. If users do not strictly follow the operating conditions provided in this sample, Hynamo Membrane will not bear all the consequences arising therefrom.
3. The water yield listed in the table is the average, and the difference between the minimum water yield of a single membrane element and the nominal value shall not exceed 20% of the nominal value.
4. During the first hour of operation, the water produced by nanofiltration should be discharged.
5. It is prohibited to add any chemical agents that may affect the membrane components during storage and operation. If such chemical agents are used in violation, Hynamo Membrane will not bear all the consequences arising therefrom.
6. Before leaving the factory, the membrane components are strictly tested, and the PP bags are used for inner packaging and yellow double-corrugated boxes for outer.
HN-JCM Special-characteristic RO Membrane Elements
We have independent research and development ability to manufacture all kinds of special-characteristic RO membrane according to customers' different requirements to be used in all RO systems which can produce pure water and save more cost.
Plug-in style:1808-40GPD,1809-50GPD,75GPD,100GPD.
Low energy&large flux RO membranes:2012-150GPD,2812-200GPD,2812-300GPD.
Anymore,we accept developing certain special membrane elements from all enterprises.
FAQ:
1. Q: Are you a trading company or a manufacturer?
A: We are a professional manufacturer of RO membrane and membrane sheet with 18 years experience in the industry.
2. Q: May I have samples?
A: Sure,of course. Sample cost can be refunded if you place formal orders in the future.
3. Q: Can you make customized products?
A: Yes,of course if you can provide us detailed specifications or drawings. Our mission is make customer idea on the products and provide the customer satisfied solutions.
4. Q: Can I use our own designed package?
A: Yes, size, color, logo and packaging style all can be customized.
5. Q: What’s your MOQ?
A: Normally, 50 PCS/item for Industrial RO membrane, 100 PCS/item for domestic. Any trial order which is less than MOQ is warmly welcomed. If you have a trialorder, please feel free to contact us so that we can make some shipping recommendation for you to save the cost based on the quantity you need.
6. Q: I am a small business owner, Can I buy from you?
A: Yes, you are warmly welcomed. To grow with our customer is our goal.We would like to grow with you together.
7. Q: What is your general lead time?
A: Normally 3-7working days for off-the-shelf samples and 14-25 days for bulk production.
