| Type: | RO Membrane | Model NO.: | TW-2012-100 |
|---|---|---|---|
| Desalination: | 97% | Capacity: | 100GPD |
| Warranty: | 1 Year | Working Up: | 1000ppm |
| Operation Pressure: | 0.5MPa | Certification: | CE, RoHS, ISO9001, NSF |
| After-sales Service Provided: | Free Spare Parts | Application: | Hotel, Commercial, Household |
| Highlight: | 100 reverse osmosis membrane,100 gpd reverse osmosis system,membrane ro 100 gpd |
||

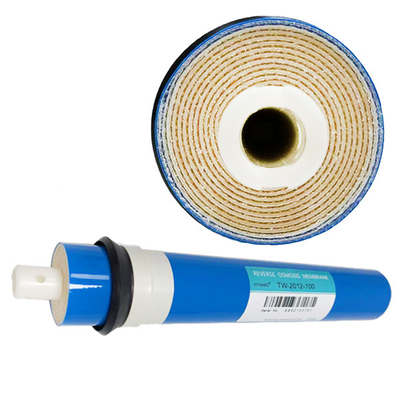

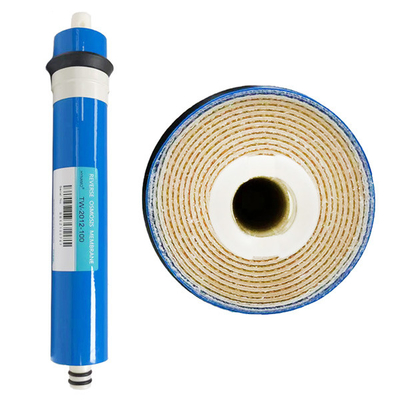

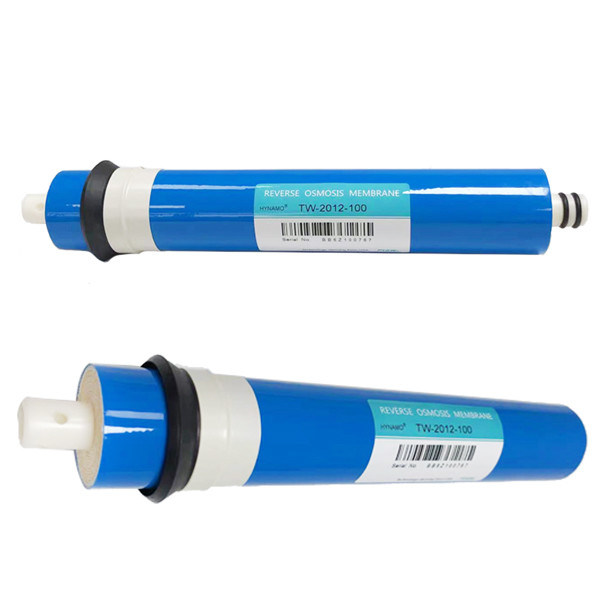

Tap Water TW-2012-100gpd RO Membrane for Reverse Osmosis Water Purifier System
The main differences between membrane and media filtration come down to the application. Both processes filter our pollutants. Both processes have two common methods for filtering. Membrane filtration sets itself apart in that it doesn't use a chemical process to filter water.
The maximum limits are: turbidity of 1 NTU and SDI of 4. Continuous operation of an RO system with feed water which has turbidity or SDI values near the limits of these values may result in significant membrane fouling.
After understanding the standard desalination rate of reverse osmosis membrane elements, the relationship between the actual desalination rate of reverse osmosis membrane and the desalination rate of reverse osmosis system, when designing reverse osmosis devices, providing users with system performance guarantees, accepting reverse osmosis devices or evaluating the performance of membrane elements, it must be based on the actual desalination rate of the system, not the standard desalination rate of membrane elements.
Performance
| Model | TW-2012-100 |
| Operation Pressure (psi) | 70 |
| Highest Operation Pressure (psi) | 150 |
| Application | For Pure water producing |
| Test Solution Concentration NaCl (ppm) | 250±50ppm |
| Recovery Rate % | 15% |
| Stable Rejection Rate % | 95 |
| Flow Rate (GPD) | 100 |
| Max. Pressure Difference (psi) | 15 |
| Max. Feed Water SDI | 5 |
| Acceptance capacity of free Chlorine | ≤0.1 |
| PH Range of feed water as continious operation | 2-11 |
Membrane Dimention
2012-100: A:298mm B:47mm C:17mm D:22mm E:254mm
1.When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
2. Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
Main Features:
High rejection quality sheet;
Long service life for reducing the cost;
High stabilized rejection with realized nominal flux;
Sanitary qualified elements;
Stringent in-house inspection & testing control.
