| Type: | Reverse Osmosis Membrane | Model NO.: | BW-2012-100 |
|---|---|---|---|
| Desalination: | 97% | Capacity: | 100 GPD |
| Certification: | CE, RoHS, ISO9001, NSF | Warranty: | 1 Year |
| Working Up: | 1000 Ppm | Operation Pressure: | 70psi |
| Highlight: | Domestic Membrane,Domestic Ro Membrane filter,reverse osmosis system 100 gpd |
||

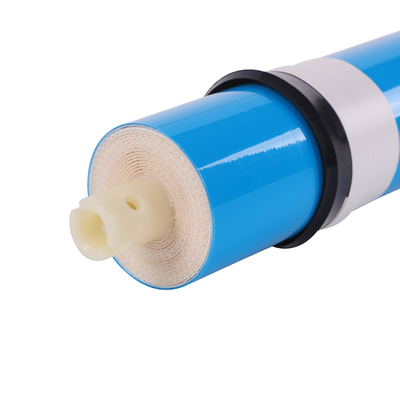

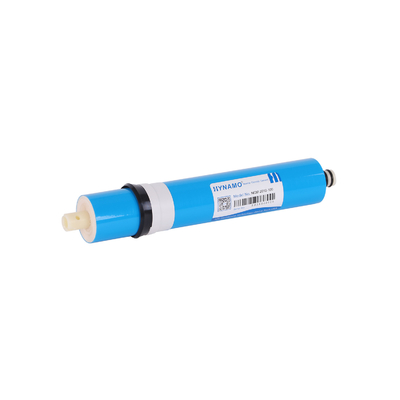

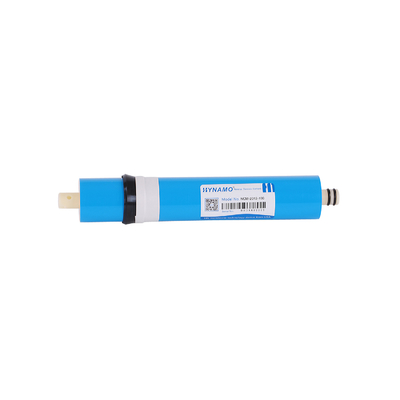

Water Filter Parts RO 100GPD Reverse Osmosis Membrane for Pure Water Purifier
Reverse osmosis membrane is the core element of realizing reverse osmosis water filter, and it is an artificial semi-permeable membrane with certain characteristics made by simulating biological semi-permeable membrane.Our membrane elements use the world's advanced membrane technology and fully automatic production equipment to ensure that the quality of each product is guaranteed.
Performance
| TYPE | BW-1812-50 | BW-2012-75 | BW-2012-100 | BW-2012-150 |
| Rejection Rate | 97% | 97% | 97% | 96% |
| Permeate Flow GPD(m³) | 50(0.19) | 75(0.28) | 100(0.38) | 150(0.57) |
| Test Pressure | 60psi(0.41MPa) | 70psi(0.5MPa) | ||
| Max. Feedwater TDS | 1000 | |||
| PH Rate Rang of Operation | 3-10 | |||
| Max. Operation Temperature | 45ºC | |||
| Recovery Rate of Single Membrane | 15% | |||
| Model No. | A(Inch/mm) | B(Inch/mm) | C(Inch/mm) | D(Inch/mm) | E(Inch/mm) |
| BW-1812-50 | 11.74/298 | 1.70/44 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-75 | 11.74/298 | 1.75/45.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-100 | 11.74/298 | 1.8/46.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-150 | 11.74/298 | 1.9/48 | 0.68/17 | 0.87/22 | 10.0/254 |
This standard specifies product specifications for reverse osmosis membrane elements for household and similar purposes (here in after referred to as reverse osmosis elements) .This standard applicable to reverse osmosis membrane elements that use municipal tap water or centralized water supply as raw water for use in homes and similar places.
