| Type: | Reverse Osmosis Membrane | Model NO.: | BW-2012-150 |
|---|---|---|---|
| Desalination: | 96% | Capacity: | 150 GPD |
| Certification: | CE, RoHS, ISO9001, NSF | Warranty: | 1 Year |
| Working Up: | 500 Ppm | Operation Pressure: | 0.48MPa |
| Highlight: | 150 gpd ro system,150 gpd ro membrane,150gpd |
||

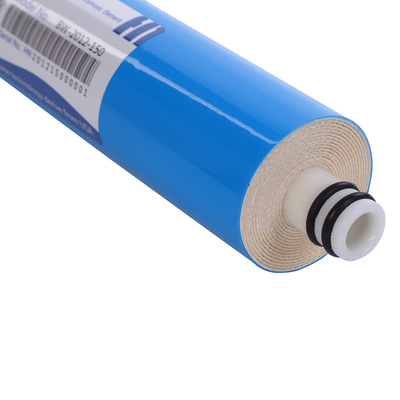

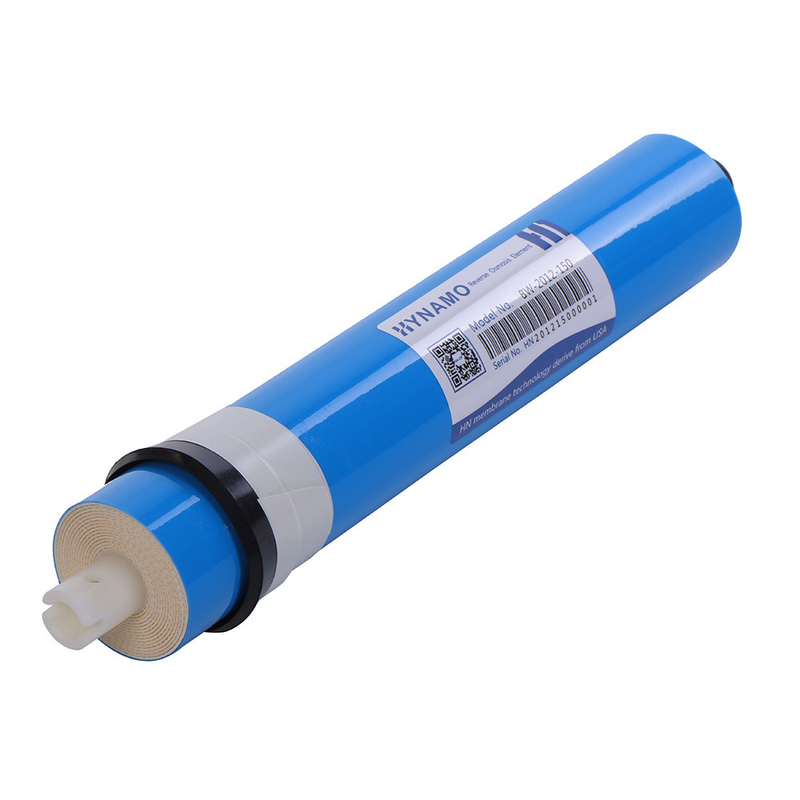

Widely Used 150G Water Purifier Spare Parts Reverse Osmosis Membrane RO Water Filter
Domestic RO membrane elements are spiral wound, composite polyamide membrane elements for Tap Water and Well Water treatment in low salinity application. These membranes are characterized by a very low operating feed pressure, normally is from 65psi(0.45MPa) and result in higher salt rejection rate, above 96%. These membranes are designed for domestic/commercial water treatment applications, such as the treatment of low salinity waters for home, residence, hospital, laboratory, shop, store,......
Performance
| TYPE | BW-1812-50 | BW-2012-75 | BW-2012-100 | BW-2012-150 |
| Rejection Rate | 97% | 97% | 97% | 96% |
| Permeate Flow GPD(m³) | 50(0.19) | 75(0.28) | 100(0.38) | 150(0.57) |
| Test Pressure | 60psi(0.41MPa) | 70psi(0.5MPa) | ||
| Max. Feedwater TDS | 1000 | |||
| PH Rate Rang of Operation | 3-10 | |||
| Max. Operation Temperature | 45ºC | |||
| Recovery Rate of Single Membrane | 15% | |||
Membrane Dimention
| Model No. | A(Inch/mm) | B(Inch/mm) | C(Inch/mm) | D(Inch/mm) | E(Inch/mm) |
| BW-1812-50 | 11.74/298 | 1.70/44 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-75 | 11.74/298 | 1.75/45.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-100 | 11.74/298 | 1.8/46.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-150 | 11.74/298 | 1.9/48 | 0.68/17 | 0.87/22 | 10.0/254 |
Our membrane elements are widely used in water treatment and material separation. The special design of the cover ,and the wider gridding ensure to improve the impact resistant and antipollution property. Besides, strict management system combine with inspection system of core technology remains stable for membranes.
