Product Details:
Payment & Shipping Terms:
|
| Type: | Reverse Osmosis Membrane | Model NO.: | BW-8040-LP |
|---|---|---|---|
| Desalination: | 99.5% | Capacity: | 10500 GPD |
| Certification: | CE, RoHS, ISO9001, NSF | Warranty: | 2 Years |
| Working Up: | 5000ppm | Operation Pressure: | 1.55MPa |
| Highlight: | ro membrane 8 inch,reverse osmosis ro plant system,membrane bw 8040 |
||

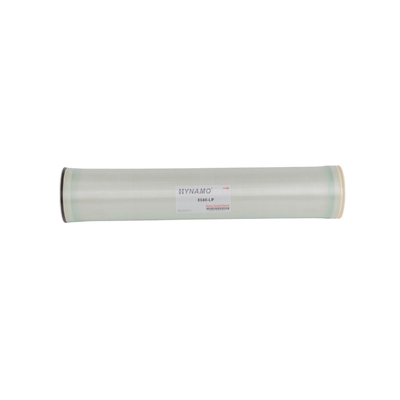

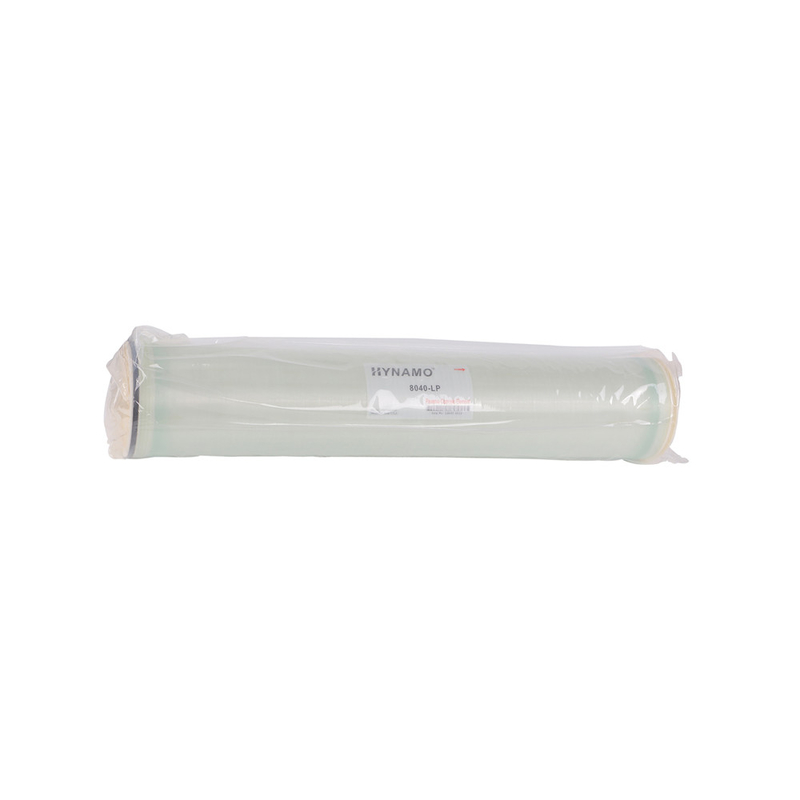

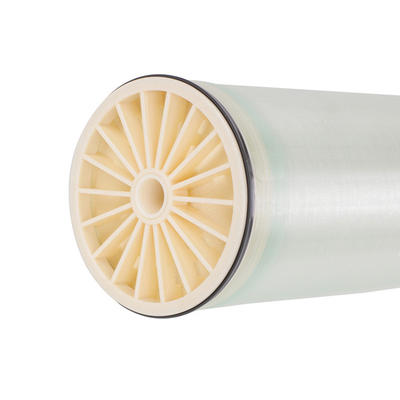

Industrial RO Water Purifier 8inch Reverse Osmosis Membrane for Water RO Plant
Reverse osmosis membranes can be used for a variety of fluid separations. Currently, the most widely used reverse osmosis membranes are cross-linked aromatic polyamide reverse osmosis membranes. Usually, m-phenylenediamine and trimesoyl chloride are used for interfacial polycondensation on the surface of porous polysulfone supported membranes. A polyamide layer is formed. The polyamide layer obtained by the reaction is the key to influence the water permeability and salt retardation rate. Therefore, focusing on the interfacial polycondensation reaction and optimizing the polyamide layer in order to obtain a reverse osmosis membrane with large flux and high salt removal rate has always been the direction of many researchers.
LP brackish water series membrane elements have the characteristics of low-pressure operation, high water production and good desalination performance. It is suitable for high-purity water equipment in the electronics and power industries, industrial water of various scales, and water for various industries such as boiler feed water in power plants.
| Model Number | Description | BW-8040-LP |
| Performance & Test Condition |
The Desalination Rate % | 99.5% |
| Water Rate GDP | 10500 | |
| The Test pressure | 225psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2000ppm | |
| Test solution pH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
