Product Details:
Payment & Shipping Terms:
|
| Type: | Reverse Osmosis Membrane | Model NO.: | BW-4040-LP |
|---|---|---|---|
| Desalination: | 99.5% | Capacity: | 2400 GPD |
| Certification: | CE, RoHS, ISO9001, NSF | Warranty: | 3 Years |
| Working Up To: | 5000 TDS | Operation Pressure: | 225psi |
| Highlight: | low pressure ro membrane 4040,4040 ultra low pressure ro membrane,low pressure reverse osmosis membrane |
||

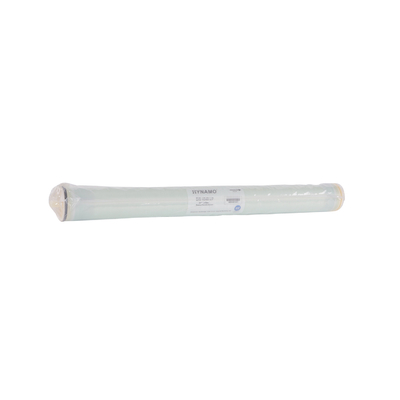

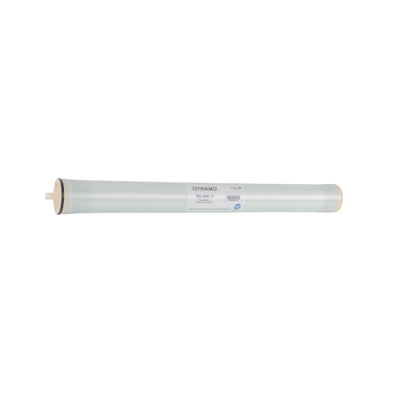

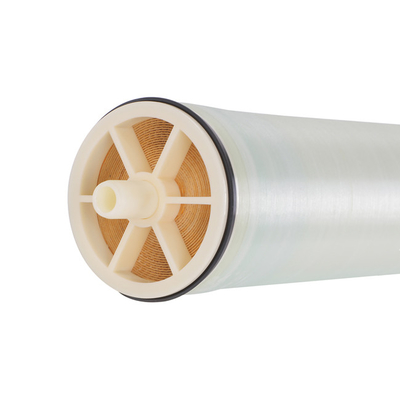

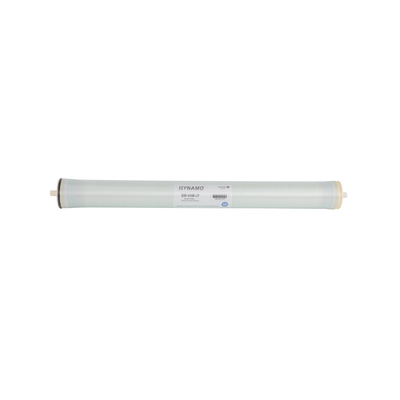

BW-4040-LP Industrial Low Pressure RO Membrane for Water Treatment Purifier System
Reverse osmosis membranes can be used for a variety of fluid separations. Currently, the most widely used reverse osmosis membranes are cross-linked aromatic polyamide reverse osmosis membranes. Usually, m-phenylenediamine and trimesoyl chloride are used for interfacial polycondensation on the surface of porous polysulfone supported membranes.
LP brackish water series membrane elements have the characteristics of low-pressure operation, high water production and good desalination performance. It is suitable for high-purity water equipment in the electronics and power industries, industrial water of various scales, and water for various industries such as boiler feed water in power plants.
PERFORMANCE
| Model Number | Description | BW-4040-LP |
| Performance & Test Condition |
The Desalination Rate % | 99.5% |
| Water Rate GDP | 2400 | |
| The Test pressure | 225psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2000ppm | |
| Test solution pH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
Dimension of Membrane Element
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
