Product Details:
Payment & Shipping Terms:
|
| Certification: | CE, RoHS, ISO9001, NSF | Type: | Reverse Osmosis Membrane |
|---|---|---|---|
| Model NO.: | BW-2012-100 | Desalination: | 97% |
| Capacity: | 100GPD | Warranty: | 1 Year |
| Working Up: | 1000TDS | Operation Pressure: | 90psi |
| High Light: | 150 Gpd Reverse Osmosis Membrane,reverse osmosis 100 gpd,membrane 100 gpd |
||

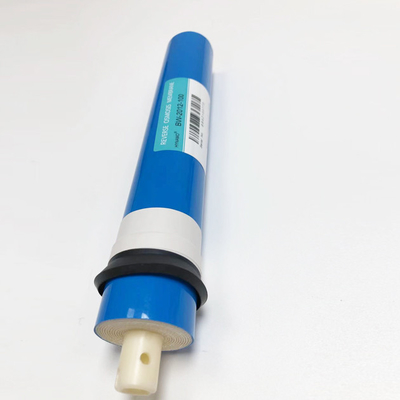

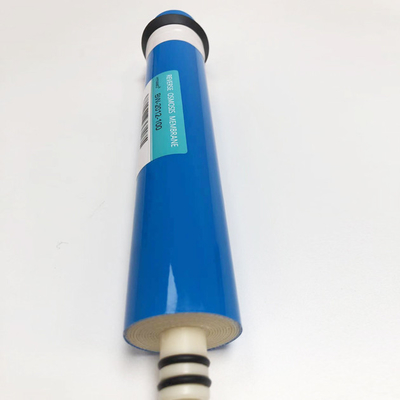

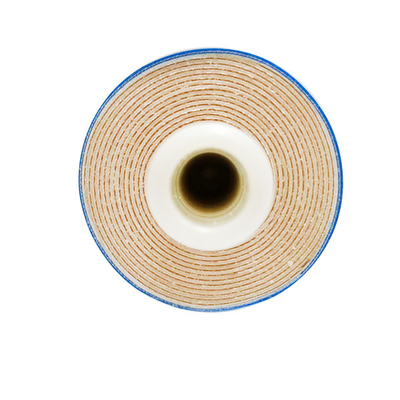

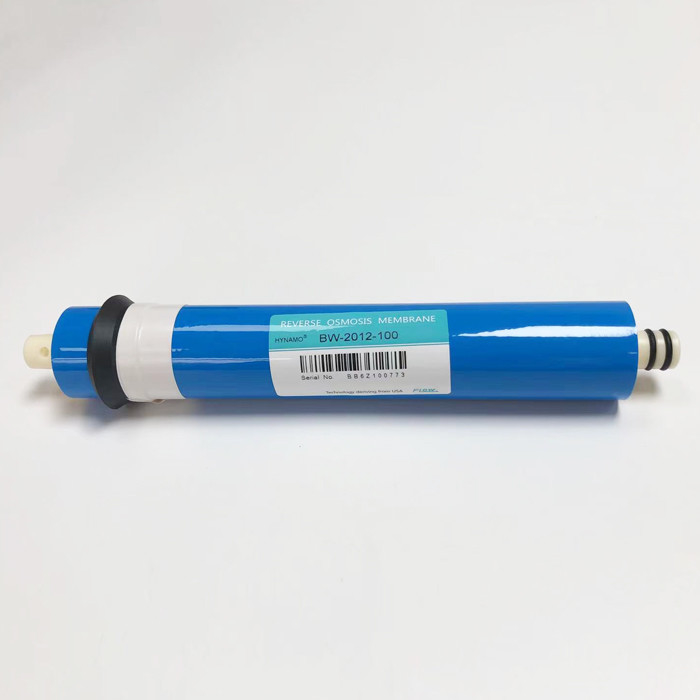

2012-100G Reverse Osmosis RO Water Purifier Parts Membrane
The main separation object of reverse osmosis membrane is the ion range in the solution, which requires no chemicals and can effectively remove the salt in the water. The desalination rate of ro system is generally more than 95%.So reverse osmosis is one of the most advanced, energy-saving and environmentally friendly desalination methods, and has become a mainstream pre-desalination process.
Performance
| model | Stable rejection rate(%) | average permeate flowGPD(m3/d) | test condition | ||
| operation pressure psi(Mpa) | test liquid NaCl(ppm) | recovery rate (%) | |||
| 1812-BW50 | 97 | 50(0.19) | 60(0.41) | 250 | 15 |
| 1812-BW75 | 97 | 75(0.28) | 60(0.41) | 250 | 15 |
| 2012-BW100 | 97 | 100(0.38) | 60(0.41) | 250 | 15 |
| 2012-150 | 95 | 150(0.57) | 70(0.5) | 500 | 15 |
| 2012-200 | 95 | 200(0.76) | 70(0.5) | 500 | 15 |
| 3012-300 | 97 | 300(1.14) | 90(0.61) | 500 | 15 |
More Detials:
1.Desalination rate up to 97%, can effectively filter bacteria, viruses, heavy metals, organic.
2.Adopt environmental protection material, good sealing effect, prevent leakage.
3.O sealing ring, prevent leakage, durable and durable.
4.Sealed packaging to prevent contamination and ensure water safety.
Membrane Dimention
2012-100: A:11.74mm B:1.7mm C:0.68mm D:0.87mm E:10.0mm
1.When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
2. Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
Main Features:
High rejection quality sheet;
Long service life for reducing the cost;
High stabilized rejection with realized nominal flux;
Sanitary qualified elements;
Stringent in-house inspection & testing control.
