Product Details:
Payment & Shipping Terms:
|
| Place Of Origin: | Hangzhou,China | Certification: | ISO9001, RoHS, CE, NSF |
|---|---|---|---|
| Type: | Reverse Osmosis Membrane | Capacity: | 75GPD |
| Salt Rejection: | 97% | Customized: | OEM&ODM |
| Packaging: | 25PCS Or 50PCS/CTN | Warranty: | 1 Year |
| High Light: | 1810 ro membrane,75 gpd reverse osmosis,ro membrane 75 gpd |
||

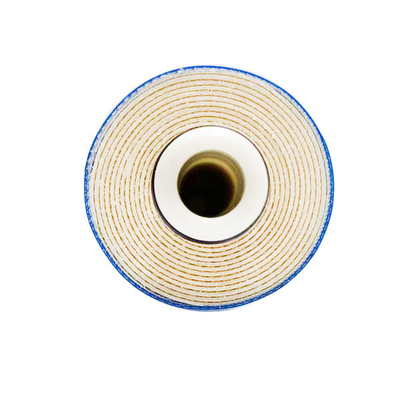

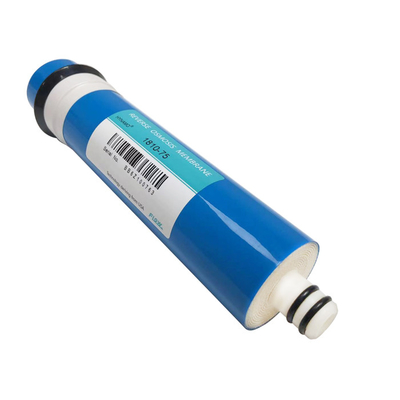

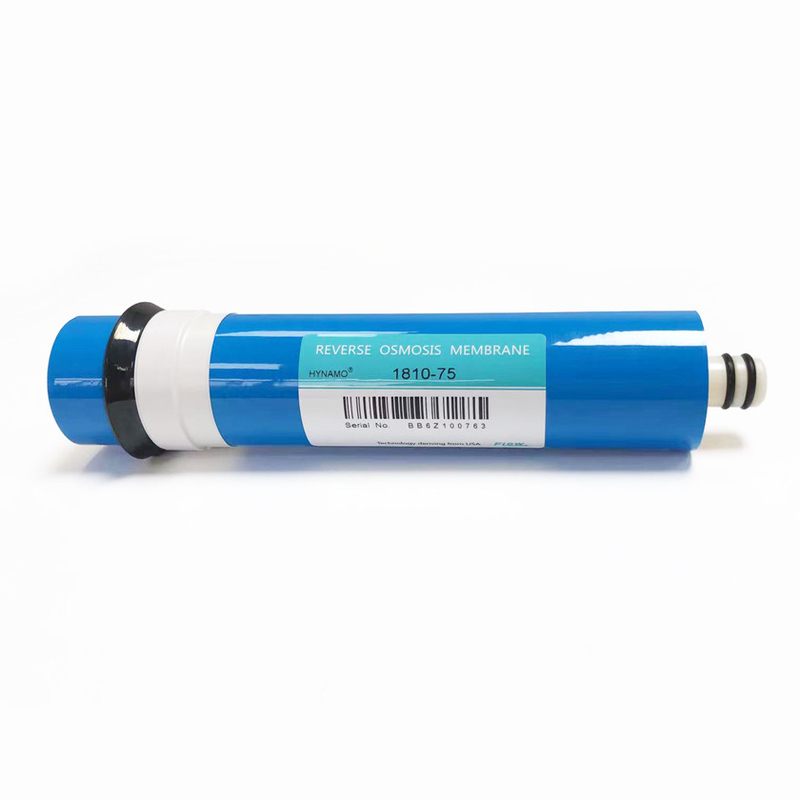

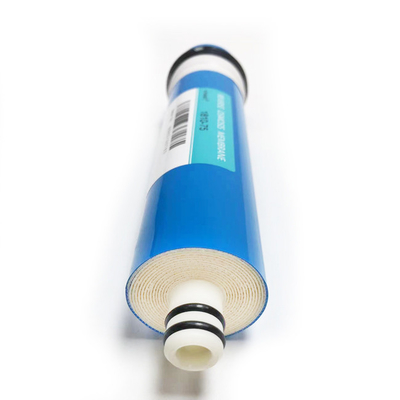

Special Model Reverse Osmosis Membrane Element 1810-75GPD for RO Water Purifier
Hynamo provide all ranges of ro membrane offering as well as OEM solutions.
Membrane Performance Specifications:
|
Name
|
Model
|
Active Membrane Area ft2(m2)
|
Average Permeated Flow GPD(m3/d)
|
Stable Rejection Rate(%)
|
Minimum Rejection Rate(%)
|
|
Reverse Osmosis Membrane
|
1810-50
|
4.4(0.41)
|
50(0.19)
|
97%
|
96.0
|
|
1810-75
|
5.0(0.46)
|
75(0.28)
|
97%
|
96.0
|
|
|
1810-100
|
6.0(0.56)
|
100(0.38)
|
97%
|
96.0
|
Membrane Operating Limits:
| RO Membrane Model No. | Maximum Operating Temperature | Maximum Operating Pressure | Feed Water PH Range, continuous operation | Maximum Feed Water Turbidity | Maximum Feed Water SDI | Chlorine Tolerance (ppm) |
| 1808-50 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
| 1809-100 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
| 1810-50 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
| 1810-75 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
| 1810-100 | 45 ºC | 200 psi | 2-11 | 1NTU | 5 | <0.1 ppm |
Note:
1. Single membrane permeate flow change in the range of ±15%
2. If users do not strictly follow the operating conditions provided in this sample, Hynamo Membrane will not bear all the consequences arising therefrom.
3. The water yield listed in the table is the average, and the difference between the minimum water yield of a single membrane element and the nominal value shall not exceed 20% of the nominal value.
4. During the first hour of operation, the water produced by nanofiltration should be discharged.
5. It is prohibited to add any chemical agents that may affect the membrane components during storage and operation. If such chemical agents are used in violation, Hynamo Membrane will not bear all the consequences arising therefrom.
6. Before leaving the factory, the membrane components are strictly tested, and the PP bags are used for inner packaging and yellow double-corrugated boxes for outer.
HN-JCM Special-characteristic RO Membrane Elements
We have independent research and development ability to manufacture all kinds of special-characteristic RO membrane according to customers' different requirements to be used in all RO systems which can produce pure water and save more cost.
Plug-in style:1808-40GPD,1809-50GPD,75GPD,100GPD.
Low energy&large flux RO membranes:2012-150GPD,2812-200GPD,2812-300GPD.
Anymore,we accept developing certain special membrane elements from all enterprises.
FAQ:
1. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: Should we use our logo/brand?
A: Yes, OEM is absolutely supported. But for some items quatity is 500pcs.
3. Q: What is the filtering accuracy of RO membrane?
A: RO meembran filtering accuracy is 0.0001um.
4.RO membrene desalination rate and service life ?
A: RO membrane desalination rate more than 97%,service life according to water quality 2-3years.
5. Q: What is the payment?
A: Usually we offer two payment terms: by Alibaba or by TT. L/C and D/A.
6. Q: How long time have your company in water treatment?
A: We have more than 18 years experience in water treatment equipment/water treatment solution.
