Product Details:
Payment & Shipping Terms:
|
| Certification: | ISO9001, RoHS, CE, NSF | Type: | Reverse Osmosis Membrane |
|---|---|---|---|
| Salt Rejection Rate: | 95% | Recovery: | 50% |
| Operation Pressure: | 150psi | Nacl Solution: | 500ppm |
| Production: | 1000GPD | Warranty: | 2 Years |
| High Light: | NSF Certified Membranes Ro 1000 Gpd,Membranes Ro 1000 Gpd Water Purifiers,1000 Gpd NSF Certified Membranes Ro |
||

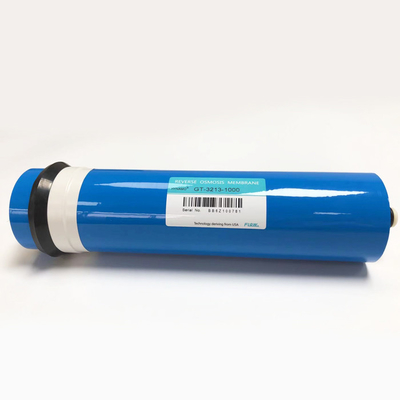

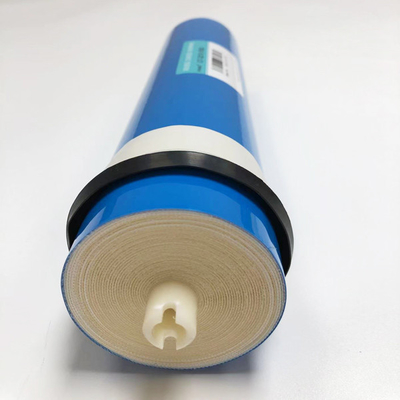

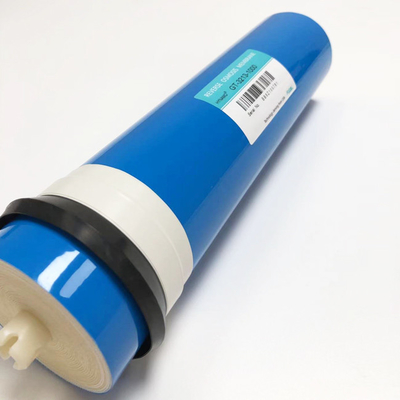

NSF Certified 1000 Tds RO Membrane Large Flow 1000 Gpd Water Purifier for Commercial
Reverse osmosis membrane separation technology as a new type of efficient separation, concentration, purification and purification technology, the past 30 years to develop rapidly, has been widely used in pure water preparation, seawater desalination and wastewater treatment and other industries. Reverse osmosis membranes are key components in reverse osmosis systems. At present, there are about hundreds of thousands of membrane module users in China, and they are increasing at a rate of 20% to 30% per year. In practical applications, the membrane elements will occur to varying degrees of pollution, resulting in an increase in the pressure difference between the inlet and outlet of the system, a decrease in water production, and a decrease in the desalination rate, which in turn affects the normal operation of the reverse osmosis system, therefore, it is necessary to set up a reverse osmosis cleaning system to effectively clean it, maximize the recovery of the performance of the contaminated membrane element, so that the membrane can run more effectively and sustainably. How to analyze and effectively clean the pollution generated in the operation of the reverse osmosis membrane has received more and more attention.
Performance
| TYPE | GT-3213-1000 |
| Rejection Rate | 95% |
| Permeate Flow GPD(m³) | 1000(3.8) |
| Test Pressure | 100psi(0.7MPa) |
| Max. Feedwater TDS | 1000 |
| PH Rate Rang of Operation | 3-10 |
| Max. Operation Temperature | 45ºC |
| Recovery Rate of Single Membrane | 50% |
Operating Limits
| Max.Operating Pressure | 125 psi (860 KPa) | Max. Feed Flow Rate | 2.0gpm(7.6lpm) |
| Max.Operating Temperature | 45ºC (113ºF) | pH Range, Continuous Operation | 2-11 |
| Max. Feed SDI15 | 5 | pH Range,Short-term Rinse | 1-13 |
| * pH>10,Max.temperature of continuous operations is 35ºC (90ºF) | Max.Chlorine Concentration | <0.1 ppm | |
Note:1. The Max. continous operation temperature is 35ºC when PH rate over 10.
2.In certain conditions,if would cause membrane breakage if the free chlorine or the other oxidant in feedwater.The production quality guarantee range is notincluded membrane breakage by oxiadation.
Installation Instructions
Unscrew the nut on the membrane shell cover at the inlet water connection end, take out the inlet water pipe, then use the membrane shell wrench to loose the membrane shell cover. Take the RO membrane from its packaging, put the end of the membrane with 2 O-rings into the RO membrane shell and push it in, finally screw the membrane shell cover back on, and tighten it with membrane shell wrench, put the inlet water pipe back into the inlet water connector and screw the nut tightly, then push the membrane shell card into the large single clip.
