| Certification: | CE, RoHS, ISO9001, NSF | Type: | Reverse Osmosis Membrane |
|---|---|---|---|
| Model NO.: | TW-1812-75 | Desalination: | 97% |
| Capacity: | 75GPD | Warranty: | 1 Year |
| Working Up: | 1000TDS | Operation Pressure: | 70psi |
| High Light: | 80 gpd ro membrane,75 GPD Flow Membrane,high tds membrane |
||

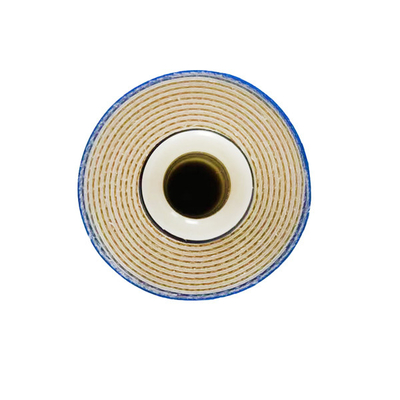

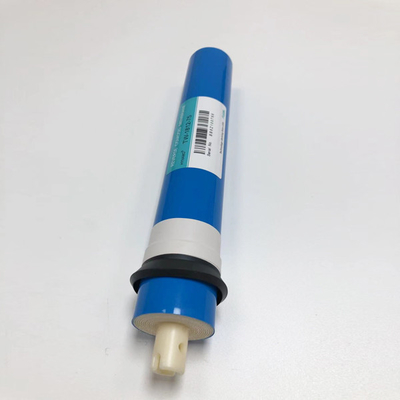

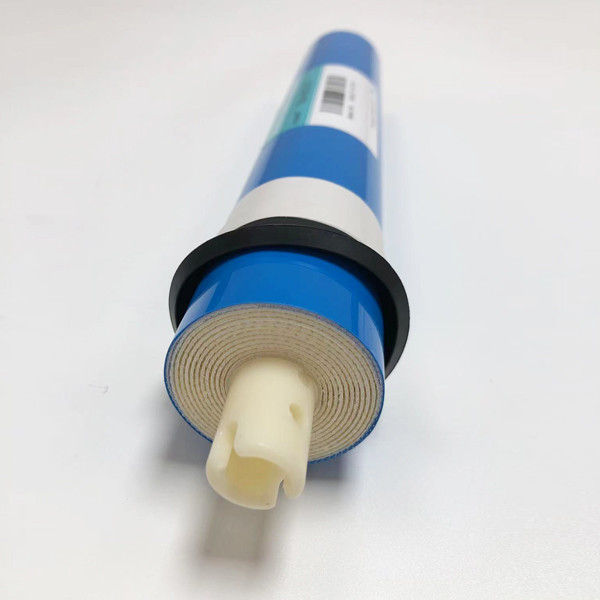

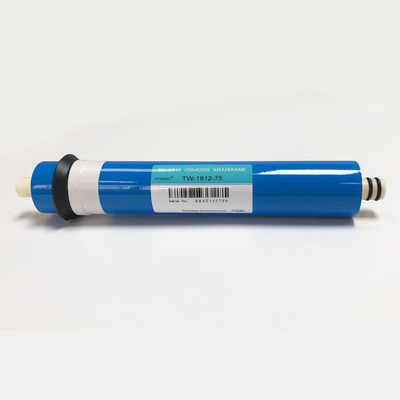

TW-1812-75G Domestic RO Membrane for RO Water Purifier Parts
During the use of the equipment, in addition to the normal performance degradation, the performance degradation of the equipment due to pollution is more serious. The usual pollution mainly includes chemical scale, organic matter and colloid pollution, and microbial pollution. Different types of pollution show different symptoms. There are also some differences in the symptoms of membrane fouling proposed by different membrane companies. In the project, we found that the length of the pollution time is not the same, the symptoms are not the same. For example, the membrane is polluted by calcium carbonate scale. When the pollution time is one week, the main performance is that the desalination rate drops rapidly, the pressure difference increases slowly, and the change of water production is not obvious. Cleaning with citric acid can completely restore the performance. The pollution time is one year (a water purifier), the salt flux increases from the initial 2mg/L to 37mg/L (raw water is 140mg/L ~ 160mg/L), and the water production decreases from 230L/h to 50L/h, After washing with citric acid, the salt flux decreased to 7 mg/L and the water production increased to 210 L/h.
Performance
| Model | TW-1812-75 |
| Operation Pressure (psi) | 70 |
| Highest Operation Pressure (psi) | 150 |
| Application | For Pure water producing |
| Test Solution Concentration NaCl (ppm) | 250±50ppm |
| Recovery Rate % | 15% |
| Stable Rejection Rate % | 95 |
| Flow Rate (GPD) | 75 |
| Max. Pressure Difference (psi) | 15 |
| Max. Feed Water SDI | 5 |
| Acceptance capacity of free Chlorine | ≤0.1 |
| PH Range of feed water as continious operation | 2-11 |
Membrane Dimention
1812-75: A:298mm B:44mm C:17mm D:22mm E:254mm
1.When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
2. Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
Main Features:
High rejection quality sheet;
Long service life for reducing the cost;
High stabilized rejection with realized nominal flux;
Sanitary qualified elements;
Stringent in-house inspection & testing control.
