Product Details:
Payment & Shipping Terms:
|
| Membrane Material: | Polyamide | Salt Rejection Rate: | 99.5% |
|---|---|---|---|
| Capacity: | 39.7m³/d | Recovery Rate: | 15% |
| Operation Pressure: | 225psi | Max. Operation Temperature: | 45℃ |
| Warranty: | 3 Years | Packing: | 1PCS/Carton |
| High Light: | Polyamide High Tds After Ro Membranes,Polyamide High Tds After Ro Membrane 8040,Polyamide ro membrane for high tds |
||

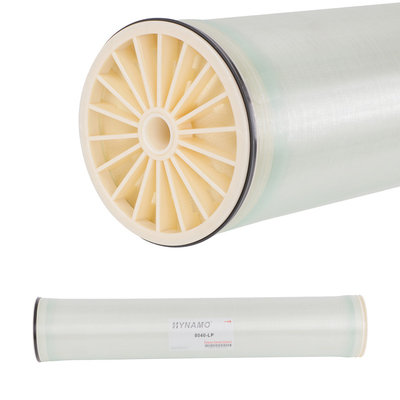

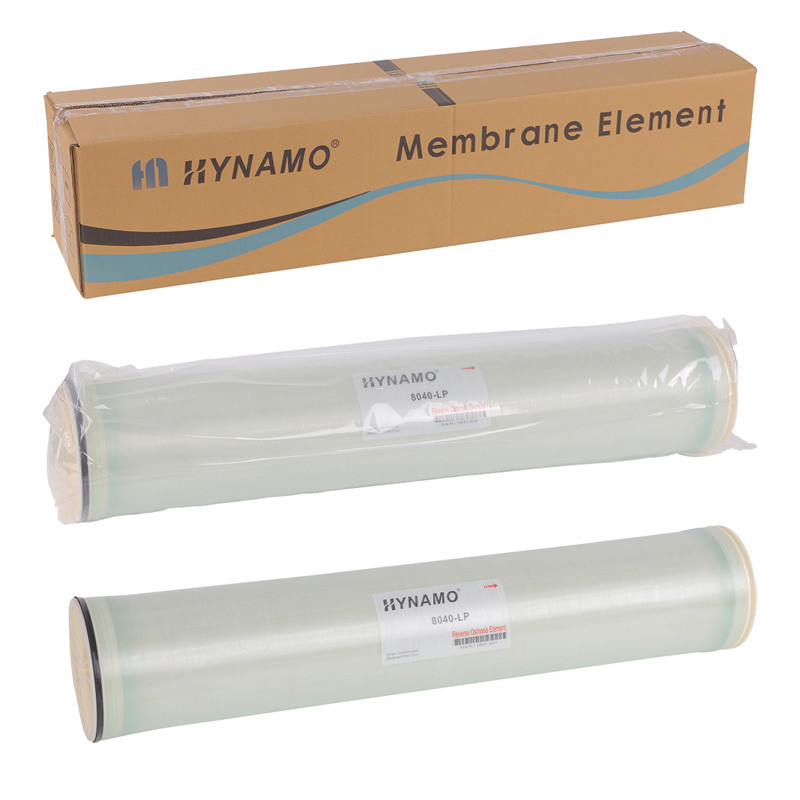

High TDS 8040-Low Pressure RO Membrane for Industrial Brackish Water RO System
In the membrane separation process, the solvent (water) in the water permeates the membrane under pressure, and the solute (ion or solute and particulate matter of different molecular weight) is retained, so that the concentration of the solute at the membrane surface is gradually higher than that of the solute at the main body of the aqueous solution. Under the action of the concentration gradient, the solute diffuses from the membrane to the bulk solution, thereby forming a boundary layer, which increases the fluid resistance and local osmotic pressure, resulting in a decrease in membrane flux. When the solvent flows to the membrane surface, the speed of the solute flowing to the membrane surface and the concentration gradient balance the diffusion speed of the solute to the bulk solution, and a stable boundary layer corresponding to the concentration difference is formed on the membrane surface, which becomes the concentration polarization boundary layer, this phenomenon is called concentration polarization.
The product specification
| Model Number | Description | 8040-LP |
| Performance & Test Condition |
The Desalination Rate % | 99.5% |
| Average Permeat Fow GDP | 10500 | |
| Test pressure | 225psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2.0-11.0 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 600psi(41.0 bar) |
| The high pressure drop | 15psi (1.0bar) |
| Continuously operating PH range a | 3-10 |
| Short wash PH range (30min) b | 2-12 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
| Maximum pressure drop for single membrane element | 15psi(0.1Mpa) |
Dimension of Membrane Element
PROCEDURES
FAQ:
1. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: Should we use our logo/brand?
A: Yes, OEM is absolutely supported. But for some items quatity is 500pcs.
3. Q: What is the filtering accuracy of RO membrane?
A: RO meembran filtering accuracy is 0.0001um.
4.RO membrene desalination rate and service life ?
A: RO meembran desalination rate more 98%,service life according to water quality 2-3years
5. Q: What is the payment?
A: Usually we offer two payment terms: by Alibaba or by TT. L/C and D/A.
6. Q: How long time have your company in water treatment?
A: We have more than 18 years experience in water treatment equipment/water treatment solution.
