| Type: | NF Membrane | Desalination: | 98% |
|---|---|---|---|
| Gallons Per Day: | 1800GPD | Nacl Test Solution: | 2000ppm |
| Certification: | CE, RoHS, CE, RoHS, NSF | Testing Pressure: | 100psi |
| Recovery Rate: | 15% | Filter Thickness: | 34mil |
| Highlight: | 4040 NF RO Membrane 1800GDP,NF RO Membranes 1800GDP,nanofiltration membranes for water treatment 1800GDP |
||

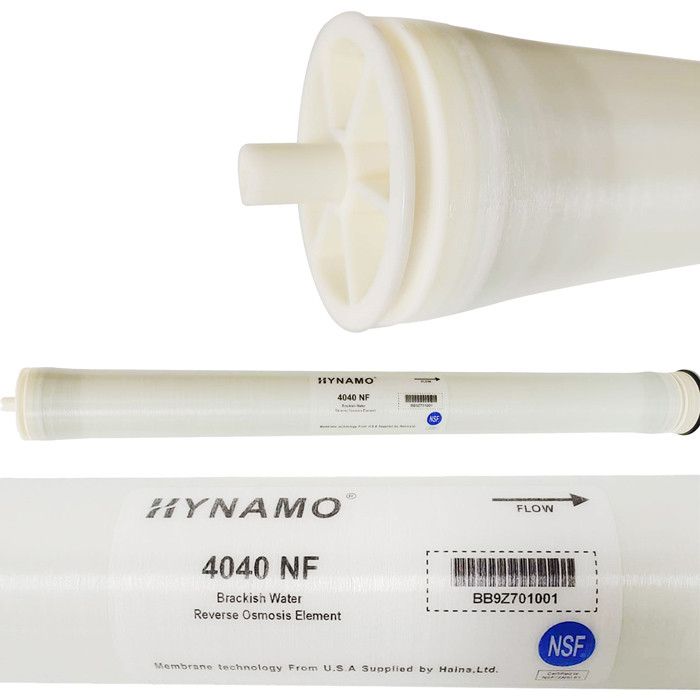

| Model Number | Description | 4040-NF |
| Performance & Test Condition |
The Desalination Rate % | 98% |
| Water Rate GDP | 1800 | |
| The Test pressure | 100psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2.0-11.0 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
| TYPE | Production Flow Rate GPD(m³/d) | Stable Rejection Rate | Operation Pressure | Recovery Rate |
| 4040-LP | 2400(9.1) | 99.5% | 225 psi (15bar) | 15% |
| 4040-ULP | 2400(9.1) | 99.2% | 150 psi (10bar) | 15% |
| 4040-XLP | 2400(9.1) | 98.5% | 100 psi (7bar) | 15% |
| 8040-LP | 10500(40) | 99.5% | 225 psi (15bar) | 15% |
| 8040-ULP | 10500(40) | 99.2% | 150 psi (10bar) | 15% |
| 8040-XLP | 10500(40) | 98.5% | 100 psi (7bar) | 15% |
The principle of nanofiltration is the same as that of membrane separation processes such as ultrafiltration and reverse osmosis. Nanofiltration is also a membrane separation process driven by pressure difference, which is an irreversible process. The separation mechanism can be described by the charge model (space charge model and fixed charge model), pore model, and electrostatic repulsion and steric hindrance models that have only been proposed in recent years. Compared with other membrane separation processes, an advantage of nanofiltration is that it can retain small molecular weight organics that pass through the ultrafiltration membrane, and can dialyze some of the inorganic salts retained by the reverse osmosis membrane—that is, it can synchronize "concentration" and desalination. conduct.
