Product Details:
Payment & Shipping Terms:
|
| Certification: | CE, RoHS, ISO9001, NSF | Type: | Reverse Osmosis Membrane Element |
|---|---|---|---|
| Model NO.: | 4040 XLP | Desalination: | 99% |
| Capacity: | 2400GPD | Warranty: | 3 Years |
| Working Up: | 2000 Ppm | Operation Pressure: | 100psi |
| High Light: | ro water purifier membrane 2400 Gpd,4040 membrane,lp4040 |
||

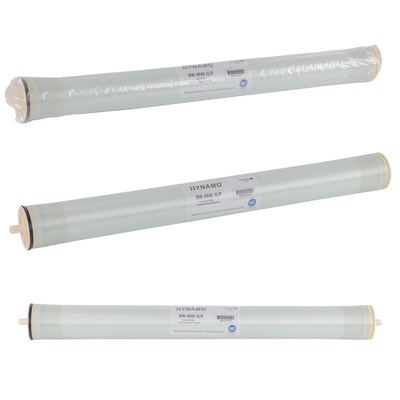

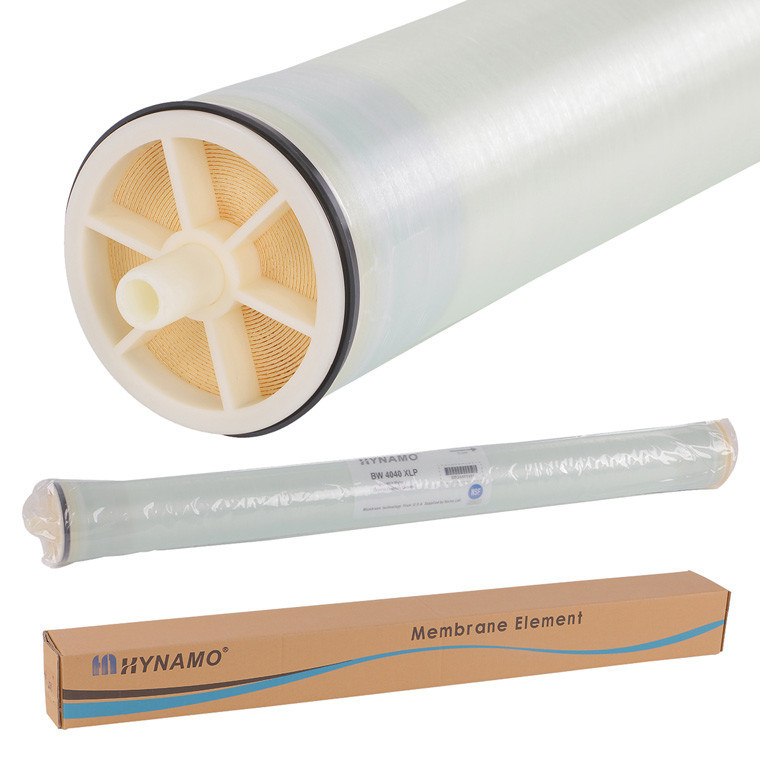

100psi Extra Low Pressure Industrial Reverse Osmosis RO Membrane for Water Purifier
Influent requirements of reverse osmosis membrane:
As the most important component in the water treatment system, the reverse osmosis membrane must be pretreated before the water is passed into the reverse osmosis membrane, so that the water quality can reach a certain standard before it can pass through the reverse osmosis membrane, otherwise the reverse osmosis membrane will appear. Often clogged or contaminated.
1. The SDI of the incoming water is reduced to about 5.
2. The free chlorine in the influent water should be reduced to below 0.05ppm, and the oil content: <2mg/L.
3. Influent water source: suitable for various water sources, the maximum sludge concentration is 15000ppm.
4. pH (running): 1~12
5. pH (cleaning): 1~12
6. Temperature (℃): 5~45
7. Feed particle size: ≤2mm, the pool where the membrane is located should not contain sharp objects that damage the membrane, such as branches, plastic sheets, sand particles, etc.
| Model Number | Description | BW-4040-XLP |
| Performance & Test Condition |
The Desalination Rate % | 99% |
| Water Rate GDP | 2400GPD | |
| The Test pressure | 100psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2000ppm | |
| Test solution pH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
model |
Stable rejection rate(%) |
average permeate flowGPD(m3/d ) |
test condition |
||
| operation pressure psi(Mpa) | test liquid NaCl(ppm) |
recovery rate (%) |
|||
| 4040-XLP | 98.5 | 2400(9.12) | 100(0.68) | 500 | 15 |
| 4040-ULP | 99.2 | 2400(9.12) | 150(1.02) | 1500 | 15 |
| 4040-LP | 99.5 | 2400(9.12) | 225(1.53) | 2000 | 15 |
| 8040-XLP | 98.5 | 10500(39.9) | 100(0.68) | 500 | 15 |
| 8040-ULP | 99.2 | 10500(39.9) | 150(1.02) | 1500 | 15 |
| 8040-LP | 99.5 | 10500(39.9) | 225(1.53) | 2000 | 15 |
FAQ:
1. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: Should we use our logo/brand?
A: Yes, OEM is absolutely supported. But for some items quatity is 500pcs.
3. Q: What is the filtering accuracy of RO membrane?
A: RO meembran filtering accuracy is 0.0001um.
4.RO membrene desalination rate and service life ?
A: RO meembran desalination rate more 98%,service life according to water quality 2-3years
5. Q: What is the payment?
A: Usually we offer two payment terms: by Alibaba or by TT. L/C and D/A.
6. Q: How long time have your company in water treatment?
A: We have more than 18 years experience in water treatment equipment/water treatment solution.
