Product Details:
Payment & Shipping Terms:
|
| Certification: | CE, RoHS, ISO9001, NSF | Type: | RO Membrane Element |
|---|---|---|---|
| Model NO.: | 1812-100 | Desalination: | 97% |
| Capacity: | 100 GPD | Warranty: | 1 Year |
| Working Up To: | 1000 Ppm | Operation Pressure: | 70psi |
| Application: | Hotel, Commercial, Household | Max Adapted Temperature: | 113°F(45°c) |
| High Light: | Domestic Ro Membrane 100 Gpd Hynamo,Hynamo Domestic Ro Membranes,Hynamo Domestic Ro Membrane 100 Gpd |
||

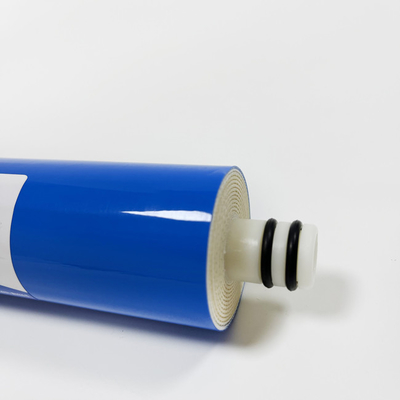

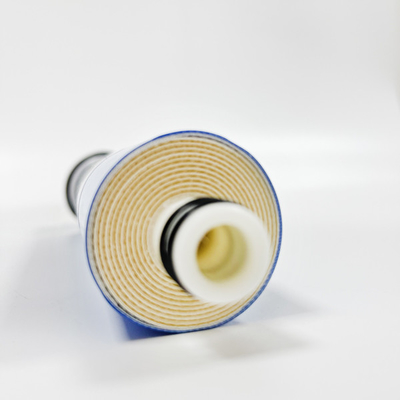

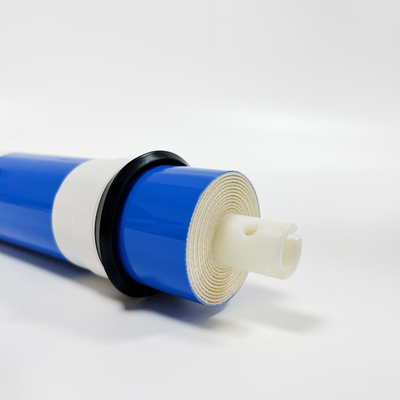

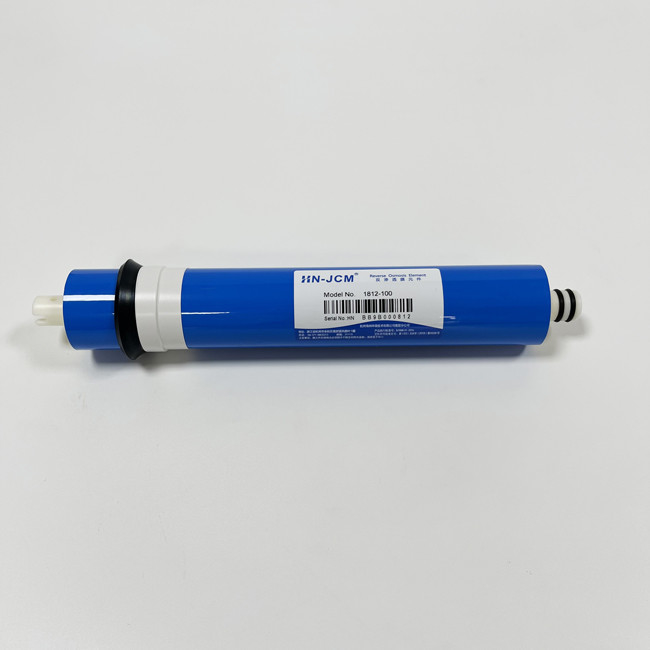

Hynamo Domestic Water Purifier Filter 1812 100gpd Reverse Osmosis RO Membrane
The desalination rate of the RO reverse osmosis membrane element is determined when it is manufactured and formed. The level of the desalination rate depends on the density of the ultra-thin desalination layer on the surface of the reverse osmosis RO membrane element. The denser the desalination layer, the higher the desalination rate and the higher the water production. Low. The desalination rate of reverse osmosis membrane for different substances is mainly determined by the structure and molecular weight of the substance. The desalination rate of high-valent ions and complex monovalent ions can exceed 99%, and the desalination rate of monovalent ions such as sodium ion, potassium ion and chloride ion is slightly Low, but can also exceed 98% (the longer the reverse osmosis membrane is used, the more chemical cleaning times, the lower the desalination rate of the reverse osmosis membrane). The removal rate of organic matter with a molecular weight greater than 100 can also exceed 98%, but for The removal rate of organics with molecular weight less than 100 is low.
Performance
| TYPE | BW-1812-50 | BW-1812-75 | BW-1812-100 | BW-2012-150 |
| Rejection Rate | 97% | 97% | 97% | 96% |
| Permeate Flow GPD(m³) | 50(0.19) | 75(0.28) | 100(0.38) | 150(0.57) |
| Test Pressure | 60psi(0.41MPa) | 70psi(0.5MPa) | ||
| Max. Feedwater TDS | 1000 | |||
| PH Rate Rang of Operation | 3-10 | |||
| Max. Operation Temperature | 45ºC | |||
| Recovery Rate of Single Membrane | 15% | |||
| Model No. | A(Inch/mm) | B(Inch/mm) | C(Inch/mm) | D(Inch/mm) | E(Inch/mm) |
| BW-1812-50 | 11.74/298 | 1.70/44 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-75 | 11.74/298 | 1.75/45.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-100 | 11.74/298 | 1.8/46.5 | 0.68/17 | 0.87/22 | 10.0/254 |
| BW-2012-150 | 11.74/298 | 1.9/48 | 0.68/17 | 0.87/22 | 10.0/254 |
This standard specifies product specifications for reverse osmosis membrane elements for household and similar purposes (here in after referred to as reverse osmosis elements) .This standard applicable to reverse osmosis membrane elements that use municipal tap water or centralized water supply as raw water for use in homes and similar places.
