Product Details:
Payment & Shipping Terms:
|
| Type: | Water Filter Parts | Model NO.: | 1812-75-NCM |
|---|---|---|---|
| Desalination: | 97% | Capacity: | 75GPD |
| Working Up: | 1000TDS | Operation Pressure: | 70psi |
| Weight: | 0.22KG | Box Size: | 32*32*34cm |
| Customized: | Offer OEM/ODM Services | ||
| Highlight: | filmtec reverse osmosis membranes,filmtec membrane 75 gpd,filmtec reverse osmosis element |
||

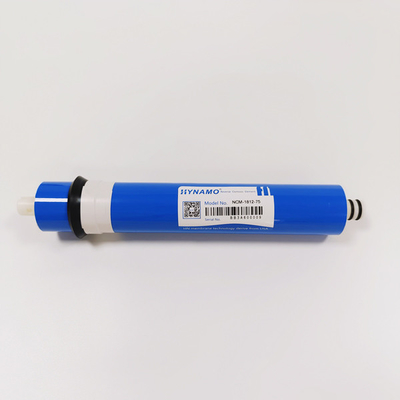

Filmtec Water Filter Cartridges 1812 75gpd Reverse Osmosis RO Membrane
Reverse osmosis means that when a pressure greater than the osmotic pressure is applied to the concentrated solution side, the solvent in the concentrated solution will flow to the dilute solution, and the flow direction of this solvent is opposite to the original penetration direction. This process is called reverse osmosis; This principle is used in the field of liquid separation, purification, impurity removal, and treatment of liquid substances.
Performance
Performance and test conditions
| Model | Average Permeate Flow (gpd) | Stable Desalination Rate (%) | Minimum Desalination Rate (%) |
| NCM 1812-75 | 75 | 97 | 96 |
Note: Single membrane permeate flow change in the range of ±15%
Operating Limits:
| Membrane type | Polyamide thin-film composite |
| Maximun Operating Pressure | 70psi |
| Maximum Operating Temperature73.4 | °F(25C°) |
| Maximun Feed Water TDS25 | 250ppm |
| Maximum sdi (15min) | 5.0 |
| Maximum Turbidity | 1.0 NTU |
| Maximum Chlorine Concentration | <0.1mg/L |
| Operating PH range | 2~10 |
Membrane Dimention
1812-75: A:11.74inch B:1.8inch C:0.68inch D:0.87inch E:10.0inch
1.When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
2. Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
Stable Salt Rejection Water Treatment Filter
| Model | Purification flux | Average flow rate | specification and dimension | Matched RO housing |
| 1812-50 | 50GPD | 0.13 L/min | 45×298mm | Type 1812 RO housing |
| 1812-75 | 75GPD | 0.20 L/min | 45×298mm | |
| 2012-100 | 100GPD | 0.26 L/min | 47×298mm | Type 2012 RO housing |
| 2012-125 | 125GPD | 0.33 L/min | 47×298mm | |
| 2012-150 | 150GPD | 0.40 L/min | 47×298mm | |
| 2812-200 | 200GPD | 0.52 L/min | 68×298mm | Type 2812 RO housing |
| 3012-300 | 300GPD | 0.78 L/min | 73×298mm | Type 3012 RO housing |
| 3012-400 | 400GPD | 1.00 L/min | 73×298mm | |
| 3013-400 | 400GPD | 1.00 L/min | 67.8×333mm | Type 3013 RO housing |
| 3013-600 | 600GPD | 1.56 L/min | 67.8×333mm | |
| 3013-800 | 800GPD | 2.1L/min | 67.8×333mm | |
| 3013-1000 | 1000GPD | 2.63L/min |
67.8×333mm |
