Product Details:
Payment & Shipping Terms:
|
| Type: | 3012-500 | Salt Rejection Rate: | 97% |
|---|---|---|---|
| Capacity: | 500GPD | Warranty: | 3 Years |
| Weight: | 0.5KG | Working Up: | 1000TDS |
| Recovery: | 50% | Function: | Water Purification Plant |
| High Light: | Domestic Commercial Ro Membrane,Commercial Ro Membrane BW 3013,500 gpd reverse osmosis system |
||

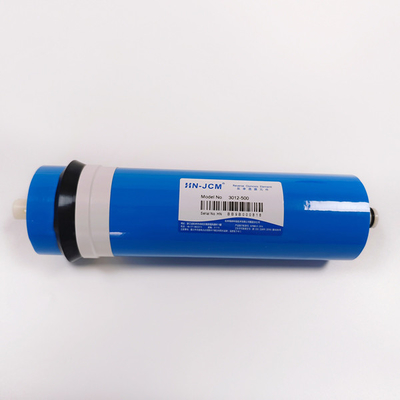

Domestic / Commercial BW 3013 - 500 Gpd High Flow RO Membrane
The reverse osmosis membrane is widely used in electric power, petrochemical industry, steel, electronics, medicine, food and beverage, municipal and environmental protection and other fields. It plays an important role in seawater and brackish water desalination, boiler water supply, industrial pure water and electronic grade ultra pure water preparation, drinking water production, wastewater treatment and special separation processes.
The reverse osmosis membrane can intercept various inorganic ions, colloidal substances and macromolecular solutes in the water, so as to obtain purified water. It can also be used for pre-concentration of macromolecular organic matter solutions. Due to the simple process of reverse osmosis and low energy consumption, it has developed rapidly in the past 20 years. It has been widely used in seawater and brackish water (see brine) desalination, boiler water softening and wastewater treatment, and combined with ion exchange to produce high-purity water. and separation and concentration of biological agents.
Product Description
| Model | 3012-500 |
| Operation Pressure (psi) | 90 |
| Highest Operation Pressure (psi) | 100 |
| Application | For Pure water producing |
| Test Solution Concentration (ppm) | 250 |
| Recovery Rate % | 50%±5 |
| Stable Rejection Rate % | 97 |
| Flow Rate (GPD) | 500 |
| Max. Pressure Difference (psi) | 15 |
| Max. Feed Water SDI | 5 |
| Acceptance capacity of free Chlorine | ≤0.1 |
| PH Range of feed water as continious operation | 2-11 |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 150psi(10bar) |
| Maximum Feed Flow | 2.0gpm(7.6lpm) |
| Continuously operating PH range a | 2-11 |
| Short wash PH range (30min) b | 1-13 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
Note:1. The Max. continous operation temperature is 35ºC when PH rate over 10.
2. In certain conditions,if would cause membrane breakage if the free chlorine or the other oxidant in feedwater.The production quality guarantee range is notincluded membrane breakage by oxiadation.
