Product Details:
Payment & Shipping Terms:
|
| Model: | 3013-600 BW | Salt Rejection Rate: | 96% |
|---|---|---|---|
| Capacity: | 500GPD | Warranty: | 3 Years |
| Weight: | 0.5KG | Working Up: | 1000TDS |
| Recovery: | 50%±5% | Function: | Water Purification Plant |
| Application: | Car, Outdoor, Hotel, Garage, Commercial, Household, Wa | Certification: | CE, RoHS, ISO9001, NSF |
| Highlight: | Commercial High Flow Ro Membrane,High Flow Ro Membrane Replacement,600 gpd ro |
||

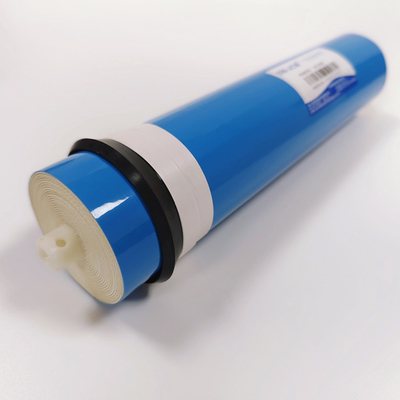

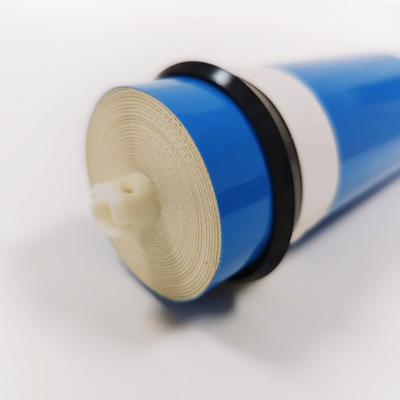

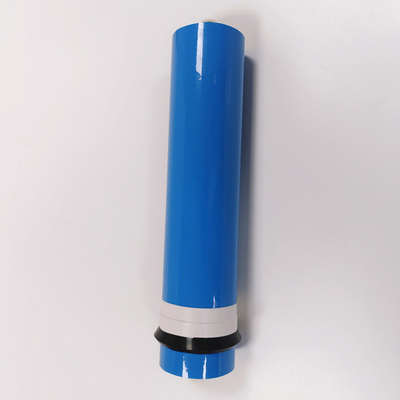

High Flow 600 Gpd Reverse Osmosis RO Membrane RO Water Purifier Parts Filtration
RO membranes are typically capable of removing 90%–99% of contaminants such as total dissolved solids (TDSs) in the water supply. The membranes are usually manufactured as a flat sheet of thin composite membranes consisting of an active poluamide layer (high permeability but impermeable to dissolved salts and particulate matter) supported by a porous polysulphone layer wound round a central collection tube.
Product Specification
| Model | 3013-600 | |
| Performance | Stable Desalination Rate% | 96 |
| Average permeate Flow GPD | 600 | |
| Test Conditions | Test Pressure | 0.6Mpa |
| Test Temperature | 25±1ºC | |
| Test Solution(NaCl) | 250±50ppm | |
| Test solution pH | 6.5-7.5 | |
| Single Membrane Element Recovery Rate | 50±5% | |
Operating Limit:
| Maximum Operating Temperature | 113ºF(45ºC) |
| Maximum Working Pressure | 150psi(10bar) |
| Maximum Feed Flow | 2.0gpm(7.6lpm) |
| Continuously operating PH range a | 2-11 |
| Short wash PH range (30min) b | 1-13 |
| Maximum feed water SDI | SDI 5 |
| Tolerance Of Free Chlorine | <0.1ppm |
Note:1. The Max. continous operation temperature is 35ºC when PH rate over 10.
2. In certain conditions,if would cause membrane breakage if the free chlorine or the other oxidant in feedwater.The production quality guarantee range is notincluded membrane breakage by oxiadation.
Reverse Osmosis Membrane – Change the reverse osmosis membrane every 24 months. Carbon Post Filter – Change this filter every 12 months to ensure quality water.
