Product Details:
Payment & Shipping Terms:
|
| Type: | Water Filter Parts | Model NO.: | 1812-100-NCM |
|---|---|---|---|
| Desalination: | 97% | Capacity: | 100GPD |
| Working Up: | 1000TDS | Operation Pressure: | 70psi |
| Weight: | 0.22KG | Box Size: | 32*32*34cm |
| Customized: | Offer OEM/ODM Services | ||
| High Light: | 1812-100-NCM 12 ro membrane,1812-100-NCM 100 gpd membrane,Blue Tape 1812-100-NCM |
||

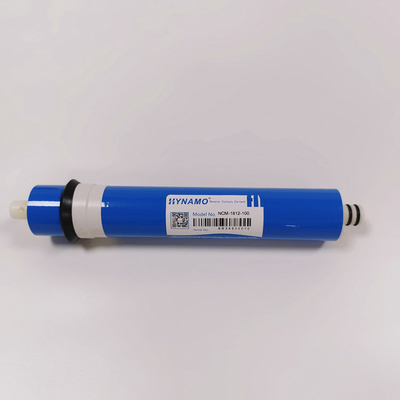

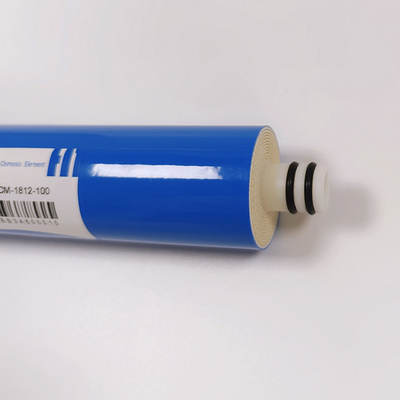

1812-100 Factory Price Household Use Blue Ta 12 Inch 100gpd Ro Membrane For Fifterpe
Testing Conditions Operation Limits and Conditions
Inlet Pressure ------------------------- 60Psi(0.41MPa) Max. Working Pressure --- 125Psi(0.86MPa)
Inlet Temperature ---------------------- 25℃ Max. Inflow Temperature ---------- 45℃
Concentration of Testing Solution ---- 250PPm SDI Max. Inflow SDI ----------------- 5
Inlet PH value ------------------------- -- 7.5-8 Residual Chlorine ----------------- < 0.1PPm
Recovery Rate -------------------------- 15% PH Range of Feedwater ----------- 3-10
PH Range of Cleaning ------------- 2-12 Max. Pressure Drop ---------10Psi(0.07MPa)
1.Permeate flow for each RO membrane element would be 15% floating up and down according to the feed water under the standard test condition.
2.Above data is subject to a continuous test running of 30 minutes.
3.Able to provide personalized, customized products by request.
Membrane Dimention
1812-100: A:11.74inch B:1.8inch C:0.68inch D:0.87inch E:10.0inch
1.When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
2. Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
Stable Salt Rejection Water Treatment Filter
| Model | Purification flux | Average flow rate | specification and dimension | Matched RO housing |
| 1812-50 | 50GPD | 0.13 L/min | 45×298mm | Type 1812 RO housing |
| 1812-75 | 75GPD | 0.20 L/min | 45×298mm | |
| 2012-100 | 100GPD | 0.26 L/min | 47×298mm | Type 2012 RO housing |
| 2012-125 | 125GPD | 0.33 L/min | 47×298mm | |
| 2012-150 | 150GPD | 0.40 L/min | 47×298mm | |
| 2812-200 | 200GPD | 0.52 L/min | 68×298mm | Type 2812 RO housing |
| 3012-300 | 300GPD | 0.78 L/min | 73×298mm | Type 3012 RO housing |
| 3012-400 | 400GPD | 1.00 L/min | 73×298mm | |
| 3013-400 | 400GPD | 1.00 L/min | 67.8×333mm | Type 3013 RO housing |
| 3013-600 | 600GPD | 1.56 L/min | 67.8×333mm | |
| 3013-800 | 800GPD | 2.1L/min | 67.8×333mm | |
| 3013-1000 | 1000GPD | 2.63L/min |
67.8×333mm |
