Product Details:
Payment & Shipping Terms:
|
| Type: | Water Filter Parts | Model NO.: | 2012-100-NCM |
|---|---|---|---|
| Desalination: | 97% | Capacity: | 100GPD |
| Working Up: | 1000TDS | Operation Pressure: | 70psi |
| Weight: | 0.22KG | Box Size: | 30*30*32cm |
| Customized: | Offer OEM/ODM Services | ||
| Highlight: | Water Purifier Domestic Ro Membrane,Domestic Ro Membrane 70psi,100 gpd ro system |
||

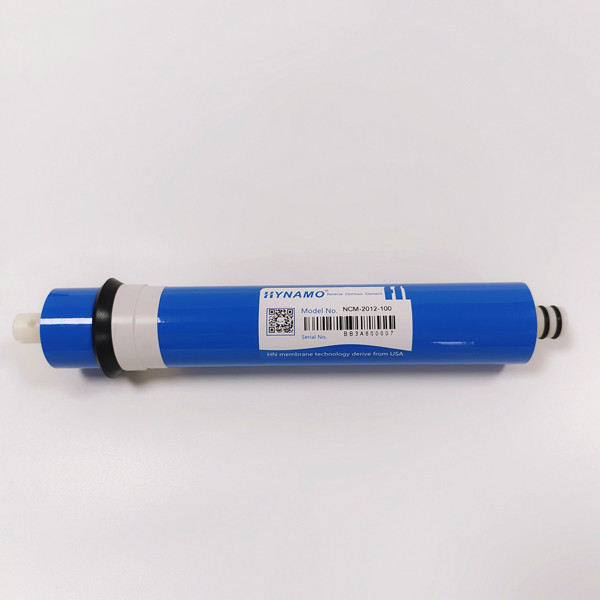

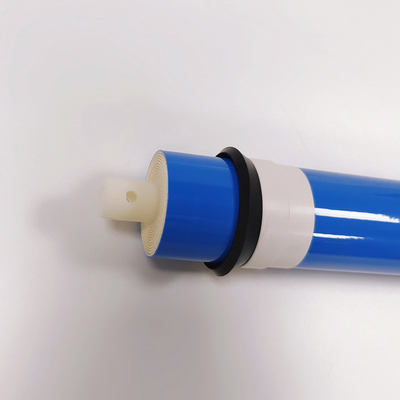

Ncm-2012-100g Hynamo Residential Reverse Osmosis Ro Membrane 100gpd For Water System
Domestic reverse osmosis membrane , 1812 series and 2012 series residential membrane elements are mainly applicable to various small sized systems, such as household water purifier and other water purifying devices in hospital and laboratory. Membranes can work under ultra low pressure to reach as high permeate flow and salt rejection as regular low pressure compo--site membrane, and achieves a salt rejection rate of up to at least 97%, which can decrease the investment costs for such relevant facilities as pump, piping, and container etc. and operating cost for the RO system, thus increasing
the economic efficiency.
2012-100: A:11.74inch B:1.8inch C:0.68inch D:0.87inch E:10.0inch
1.When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.
2. Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which doesn't belong to product warranty range.
Stable Salt Rejection Water Treatment Filter
| Model |
NCM- 1810 - 50 NCM - 1812 - 50 |
TFC - 1810 - 75 NCM- 2012 - 75 |
NCM - 1810 - 100 NCM - 2012 - 100 |
NCM - 2012 - 125 | NCM - 2012 -150 | NCM - 2012 - 200 | |
| Perfor-mance | Stable Desalination % | 97 | 97 | 97 | 97 | 97 | 97 |
| Min. Desalination % | 96 | 96 | 96 | 96 | 96 | 96 | |
| Mean Permeable Flow GPD (L/d) | 50 (204) | 75 (281) | 100 (380) | 125 (478) | 150 (567.75) | 200(760) | |
| Active Film Area ft2(m2) | 3.5 (0.32) | 4.2 (0.38) | 5.0 (0.46) | 5.0 (0.50) | 6.0 (0.8) | 10.33 (0.96) | |
| Test Conditions | Pressure | 65psi (0.45Mpa) | |||||
| Water Temp. | 25℃ | ||||||
| Concentration(NaCl) | 500ppm | ||||||
| Water PH | 6.5 to 7.5 | ||||||
| Recovery Rate % | 15 | ||||||
| Operating Conditions | Max. Operating Pressure | 300psi (2.0Mpa) | |||||
| Max. Feed Water Temp. | 45℃ | ||||||
| Max. Feed Water Silt Density Index (SDI) | 5 | ||||||
| Feed Water Chlorine Tolerance | < 0.1 mg/l | ||||||
| Feed Water PH Range, Continuous Operation | 3 to 10 | ||||||
| Feed Water PH Range, Short-Term Cleaning | 2 to 11 | ||||||
| Max. Pressure Drop of Single Membrane | 10psi (0.07Mpa) | ||||||
