700 GPD High Volume Reverse Osmosis System Ro Water High Recovery Rate

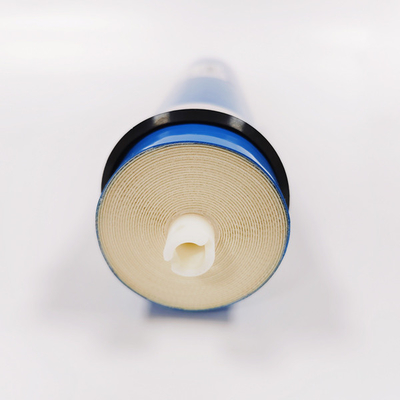

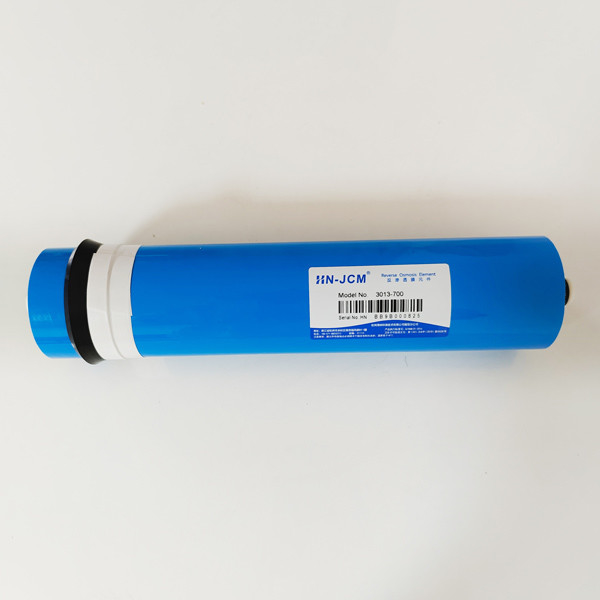

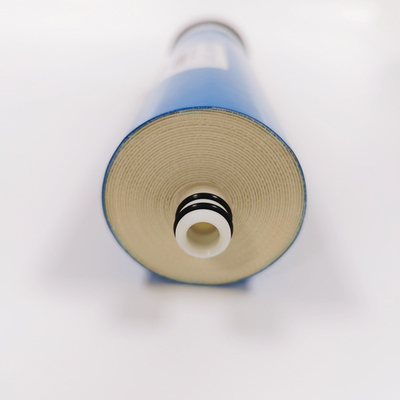

700GPD Large Flow with 50% High Recovery Rate RO Membrane Element

Osmosis occurs when two solutions with different concentrations are separated by a semipermeable membrane. In RO water purification systems, the osmotic pressure is overcome using hydraulic pressure, which is applied using a pump to the concentrated side. Water is then driven from the concentrated solution and collected downstream of the membrane.

RO membranes are sized on their water volume production rate and the desired hourly or daily rate of water to be used.

Performance and test conditions

Note: Single membrane permeate flow change in the range of ±15%

Test Conditions

Test Pressure 100psi( 0.7Mpa)

Temperature 25ºC

Concentration of Testing Solution (NaCl) 500ppm

Testing Solution PH 2-11

Note:1. The Max. continous operation temperature is 35ºC when PH rate over 10.

        2. In certain conditions,if would cause membrane breakage if the free chlorine or the other oxidant in feedwater.The production quality guarantee range is notincluded membrane breakage by oxiadation.

Dimension of Membrane Element

3013-700:    A:12.0inch          B:3.0inch          C:0.68inch          D:0.75inch          E:10inch

HN-JCM brand membrane element produced by world advanced membrane technology and fully automatic production equipment. It can operation under the extra low pressure. Our membrane suitable for household water purifiers, hospitals, laboratory pure water, treatment municipal tap water, well water and other low salinity water sources.
