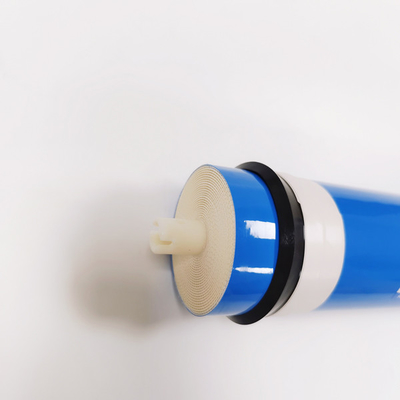

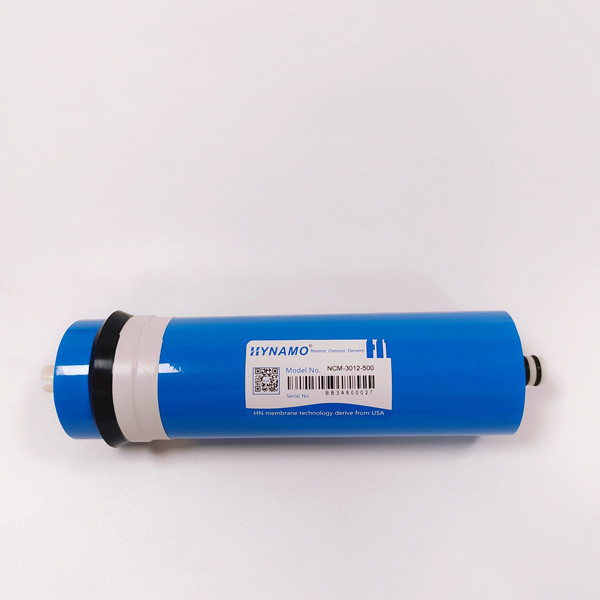

3012 High Flow Ro Membrane 400 Gpd 500gpd 600 Gpd High Quality

China Hangzhou Haina Environmental Protection Tech Co., Ltd. certification
China Hangzhou Haina Environmental Protection Tech Co., Ltd. certification
I'm Online Chat Now

3012 High Flow Ro Membrane 400 Gpd 500gpd 600 Gpd High Quality

3012 High Flow Ro Membrane 400 Gpd 500gpd 600 Gpd High Quality
3012 High Flow Ro Membrane 400 Gpd 500gpd 600 Gpd High Quality 3012 High Flow Ro Membrane 400 Gpd 500gpd 600 Gpd High Quality

Large Image :  3012 High Flow Ro Membrane 400 Gpd 500gpd 600 Gpd High Quality

Product Details:
Place of Origin: Zhejiang,China
Brand Name: HYNAMO
Certification: CE,NSF,ROHS,SGS,ISO9001,
Model Number: 3012-500-NCM
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: 33* 33 * 35.cm
Delivery Time: depend on quantity
Payment Terms: L/C, T/T, D/P, MoneyGram, Western Union, D/A
Supply Ability: 30000 PCS /Month
Detailed Product Description
Type: Water Filter Parts Model NO.: 3012-500-NCM
Desalination: 95% Capacity: 500GPD
Active Membrane Area: 13.2ft2(1.23m2) Operation Pressure: 90psi
Weight: 0.4KG Customized: Offer OEM/ODM Services
High Light:

3012 High Flow Ro Membrane

,

ro 400gpd

,

High Flow Ro Membrane 400 gpd

Hynamo RO membrane 3012 500gpd 400gpd 600 gpd High Quality Reverse Osmosis Membrane

Reverse Osmosis (RO) is a water purification technology that uses a semipermeable membrane to remove ions, molecules, and larger particles from drinking water.Using RO membrane to desalt has higher efficiency and better economic than general ion exchange method and distillation method.
Perfect option for house-hold RO units with feed water lower than 2000ppm, like tap water, municiple water, underground water.
Advantages:
1. Competitive pricing
2. NSF-certified quality
3. Excellent outlook and great performance
4. Dry membrane
5. 100% tested

Membrane Dimention



3012 High Flow Ro Membrane 400 Gpd 500gpd 600 Gpd High Quality 0
3012-500:  A:12inch          B:0.75inch          C:0.68inch          D:3.00inch          E:10.0inch


     1.When PH is above 10, the Maximum Temperature of Continuous Operation is 35ºC.



     2. Under certain conditions, the presence of free chlorine and other oxidants in the water may cause serious membrane damage, which                    doesn't belong to product warranty range.



Membrane Performance Specifications:
1. Permeate flow rate and salt rejection is based on testing conditions: 25⁰C, pH 7.5, 20% recovery.
2. Stabilized salt rejection is generally achieved within 24-48 hours of continuous use, depending upon feedwater characteristics and operating conditions.
Model
NCM-3012-200
NCM-3012-300
NCM-3012-400
NCM-3013-400
NCM-3213-600
NCM-3213-800
NCM-3020HF
Performance
Stable Desalination %
97
97
97
97
97
98
Min. Desalination %
95
95
95
95
95
97
Mean Permeable Flow GDP (L/d)
200 (760)
300 (1135)
400 (1512)
600 (2270)
800 (3030)
600 (2280)
Active Film Area ft2(m2)
10 (1.0)
14 (1.4)
16 (1.92)
27.5 (2.56)
34 (3.2)
26 (2.4)
Test Conditions
Pressure
65psi
(0.45Mpa)
150psi
(1.03Mpa)
Water Temp.
25℃
25℃
Concentration(NaCl)
500ppm
500ppm
Water PH
6.5 to 7.5
6.5 to 7.5
Recovery Rate %
15
15
Operating Conditions
Max. Operating Pressure
300psi
(2.07Mpa)
500psi
(3.45Mpa)
Max. Feed Water Temp.
45℃
45℃
Max. Feed Water Silt Density Index (SDI)
5
5
Feed Water Chlorine Tolerance
< 0.1ppm
< 0.1ppm
Feed Water PH Range, Continuous Operation
3 to 10
3 to 10
Feed Water PH Range, Short-Term Cleaning
2 to 12
2 to 12
Max. Pressure Drop of Single Membrane
10psi
(0.07Mpa)
10psi
(0.07Mpa)



Our Service:

Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design is available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying to offer.
4.All of our products are produced by our professional workers and we have our high-work-effect foreign trade team, you can totally believe our service.

After you choose
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you within 7 working days after your payment
3. Email you the tracking No., and help to chase the parcels until it arrive you.

After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.



3012 High Flow Ro Membrane 400 Gpd 500gpd 600 Gpd High Quality 1



FAQ:



Q1: What can you buy from us?

A1: Most kinds of household RO machine and its accessories, industrial reverse osmosis equipment, industrial softening equipment, precision control and related accessories



Q2: How can we guarantee quality?

A1: We have a pre-production sample before mass production&final Inspection before shipment; Our products are certified.And we can supply SGS,ISO9001,CE certification.



Q3: How to make payment ?

A3: We accept payment by L/C, T/T, Western Union, Money Gram, Trade Assurance, etc



Q4: Can you provide brand customization and packaging customization?

A4: Yes, OEM and ODM are available based your demand.
