Product Details:
Payment & Shipping Terms:
|
| Certification: | CE, RoHS, ISO9001, NSF | Type: | Reverse Osmosis Membrane |
|---|---|---|---|
| Model NO.: | 4040-XLP | Desalination: | 99% |
| Capacity: | 9m³/d | Warranty: | 3 Years |
| Working Up: | 2000 Ppm | Operation Pressure: | 100psi |
| High Light: | 4 inch ro membrane,100psi ro membrane,low pressure ro membrane |
||

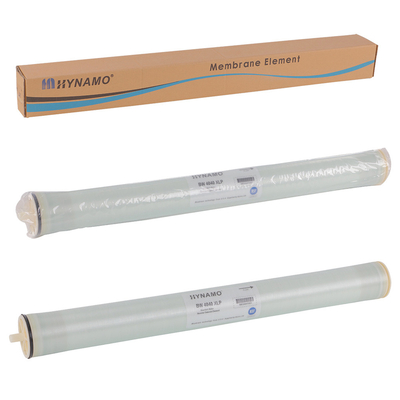

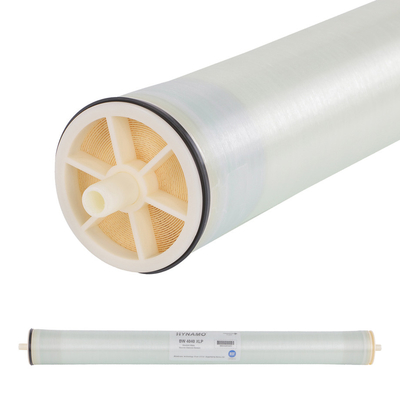

Extra Low Pressure 4inch Industrial Reverse Osmosis RO Membrane for RO Water Purifier
Reverse osmosis (RO) is a method of separating the solute and solvent in the solution by means of the selective interception of the semi-permeable membrane under the pressure drive. Regardless of the low-pressure composite membrane or the ultra-low-pressure composite membrane, it is the size of the water permeation rate. , the desalination rate is used to measure the quality of the membrane, and the water permeation rate, that is, the water flux, is proportional to the driving pressure. If a certain water flux can be achieved, the lower the required driving pressure, the lower the Energy consumption, but also reduce equipment investment such as pumps, pressure vessels and pipes.
| Model Number | Description | BW-4040-XLP |
| Performance & Test Condition |
The Desalination Rate % | 99% |
| Water Rate GDP | 2400GPD | |
| The Test pressure | 100psi | |
| Test solution Temperature | 25± 1ºC | |
| Test Solution Concentration NaCl | 2000ppm | |
| Test solution pH value | 6.5-7.5 | |
| Recovery Of Single-Branch Membrane Element | 15% | |
| Feed water SDI | 5 |
model |
Stable rejection rate(%) |
average permeate flowGPD(m3/d ) |
test condition |
||
| operation pressure psi(Mpa) | test liquid NaCl(ppm) |
recovery rate (%) |
|||
| 4040-XLP | 98.5 | 2400(9.12) | 100(0.68) | 500 | 15 |
| 4040-ULP | 99.2 | 2400(9.12) | 150(1.02) | 1500 | 15 |
| 4040-LP | 99.5 | 2400(9.12) | 225(1.53) | 2000 | 15 |
| 8040-XLP | 98.5 | 10500(39.9) | 100(0.68) | 500 | 15 |
| 8040-ULP | 99.2 | 10500(39.9) | 150(1.02) | 1500 | 15 |
| 8040-LP | 99.5 | 10500(39.9) | 225(1.53) | 2000 | 15 |
FAQ:
1. Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
2. Q: Should we use our logo/brand?
A: Yes, OEM is absolutely supported. But for some items quatity is 500pcs.
3. Q: What is the filtering accuracy of RO membrane?
A: RO meembran filtering accuracy is 0.0001um.
4.RO membrene desalination rate and service life ?
A: RO meembran desalination rate more 98%,service life according to water quality 2-3years
5. Q: What is the payment?
A: Usually we offer two payment terms: by Alibaba or by TT. L/C and D/A.
6. Q: How long time have your company in water treatment?
A: We have more than 18 years experience in water treatment equipment/water treatment solution.
